dear-imgui-rs

dear-imgui-rs is a Rust bindings ecosystem for Dear ImGui, featuring docking support, WGPU/GL backends, and a rich set of extensions (ImPlot/ImPlot3D, ImGuizmo/ImGuIZMO.quat, ImNodes, file browser, reflection-based UI).

What’s in this repo

• Core
  • dear-imgui-sys — low‑level FFI via cimgui (docking branch), bindgen against Dear ImGui v1.92.5
  • dear-imgui-rs — safe, idiomatic Rust API (RAII + builder style similar to imgui-rs)
  • Backends: dear-imgui-wgpu, dear-imgui-glow, dear-imgui-winit, dear-imgui-sdl3
  • dear-app — convenient Winit + WGPU application runner (docking, themes, add-ons)
• Extensions
  • dear-imguizmo — 3D gizmo (cimguizmo C API) + a pure‑Rust GraphEditor
  • dear-imnodes — node editor (cimnodes C API)
  • dear-implot — plotting (cimplot C API)
  • dear-implot3d — 3D plotting (cimplot3d C API)
  • dear-imguizmo-quat — quaternion + 3D gizmo (cimguizmo_quat C API)
  • dear-file-browser — native dialogs (rfd) + pure ImGui in-UI file browser
  • dear-imgui-reflect — reflection-based UI helpers (auto-generate ImGui widgets from Rust types)

All crates are maintained together in this workspace.

Hello, ImGui (Hello World)

use dear_imgui_rs::*;

let mut ctx = Context::create();
let ui = ctx.frame();
ui.window("Hello")
  .size([300.0, 120.0], Condition::FirstUseEver)
  .build(|| {
      ui.text("Hello, world!");
      if ui.button("Click me") { println!("clicked"); }
  });
// Rendering is done by a backend (e.g. dear-imgui-wgpu or dear-imgui-glow)
// Tip: pass `.opened(&mut open)` if you want a title-bar close button (X).

// Tip: For fallible creation, use `Context::try_create()`

Examples

# Clone with submodules
git clone https://github.com/Latias94/dear-imgui-rs
git submodule update --init --recursive

# Core & docking examples
cargo run --bin game_engine_docking
cargo run --bin dockspace_minimal

# dear-app examples (application runner with docking support)
cargo run --bin dear_app_quickstart
cargo run --bin dear_app_docking

# Extension examples (using wgpu + winit directly)
cargo run --bin imguizmo_basic --features imguizmo
cargo run --bin imnodes_basic --features imnodes
cargo run --bin implot_basic --features implot
cargo run --bin imguizmo_quat_basic --features imguizmo-quat
cargo run --bin reflect_demo --features reflect

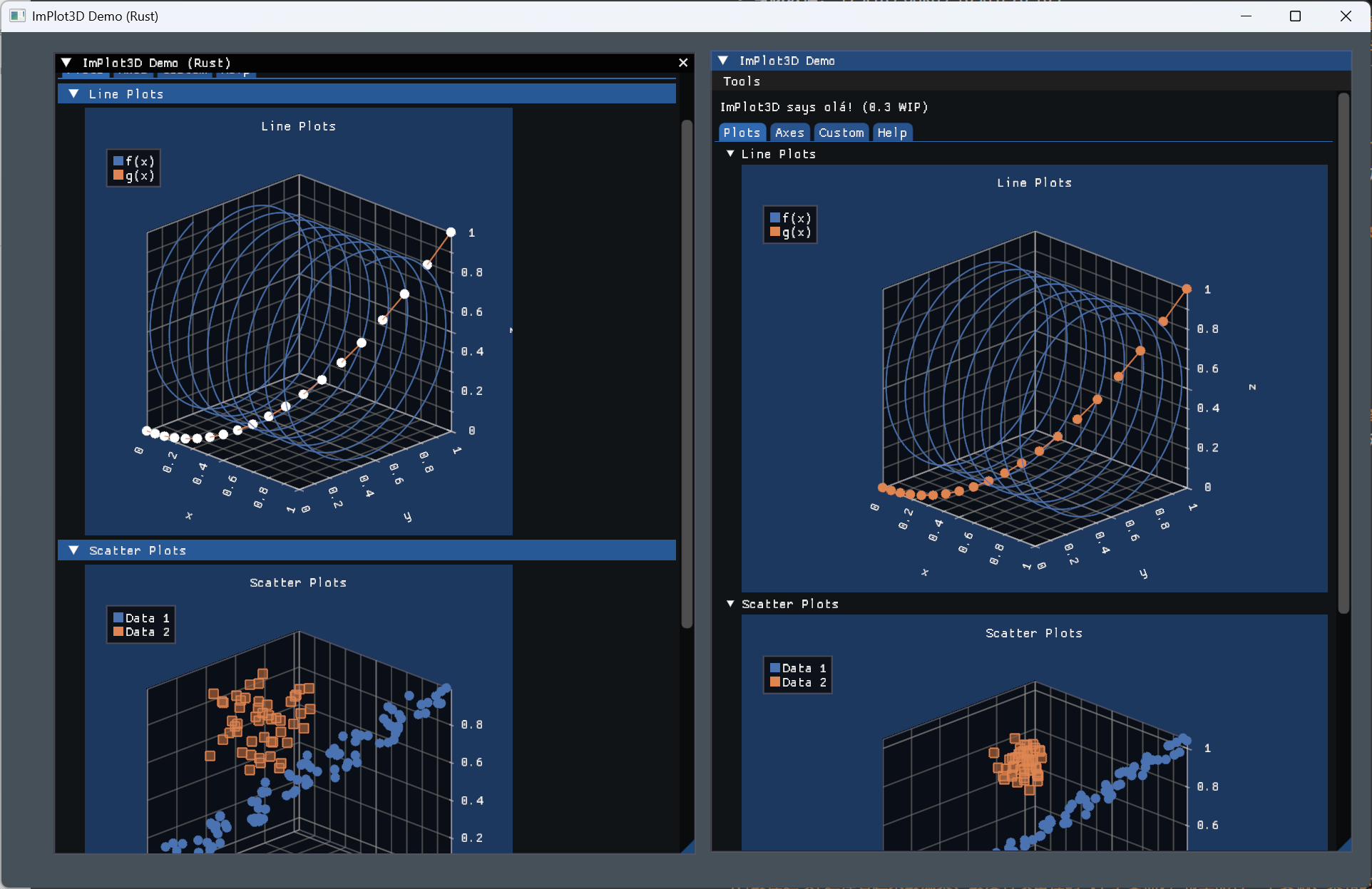

# implot3d example (uses dear-app)
cargo run --bin implot3d_basic --features implot3d

# WebAssembly (WASM) web demo (import-style, ImGui + optional ImPlot/ImPlot3D/ImNodes/ImGuizmo/ImGuIZMO.quat)
# Note: this import-style WASM path is developed on `main` and shipped in the 0.7.x+ release trains.
# For the full setup (bindings generation, web demo build, provider build, and troubleshooting),
# see the "WebAssembly (WASM) support" section below and docs/WASM.md.

# SDL3 backends (native)
# SDL3 + OpenGL3 with official C++ backends (multi-viewport via imgui_impl_sdl3/imgui_impl_opengl3)
cargo run -p dear-imgui-examples --bin sdl3_opengl_multi_viewport --features multi-viewport,sdl3-opengl3

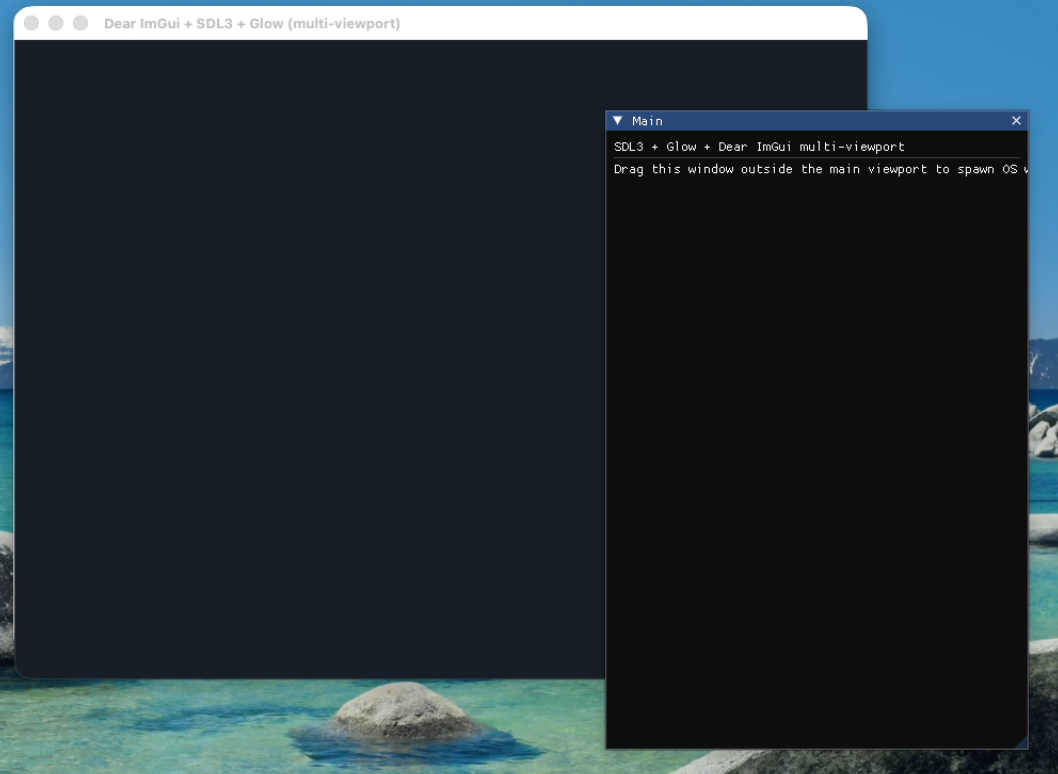

# SDL3 + Glow (experimental multi-viewport using Rust Glow renderer)
cargo run -p dear-imgui-examples --bin sdl3_glow_multi_viewport --features multi-viewport,sdl3-platform
# SDL3 + WGPU (single-window)
cargo run -p dear-imgui-examples --bin sdl3_wgpu --features sdl3-platform
# SDL3 + WGPU (experimental multi-viewport, native only)
cargo run -p dear-imgui-examples --bin sdl3_wgpu_multi_viewport --features sdl3-wgpu-multi-viewport

# winit + WGPU (experimental multi-viewport testbed, native only)
# Enabled on Windows/macOS/Linux; tested on Windows/macOS, Linux untested.
cargo run -p dear-imgui-examples --bin multi_viewport_wgpu --features multi-viewport

Tip: The ImNodes example includes multiple tabs (Hello, Multi-Editor, Style, Advanced Style, Save/Load, Color Editor, Shader Graph, MiniMap Callback).

See examples/README.md for a curated index and the planned from‑easy‑to‑advanced layout.

File Browser

# OS-native dialogs (rfd)
cargo run --bin file_dialog_native --features file-browser

# Pure ImGui in-UI file browser
cargo run --bin file_browser_imgui --features file-browser

Installation

Core + Backends

[dependencies]
dear-imgui-rs = "0.8"
# Choose a backend + platform integration
dear-imgui-wgpu = "0.8"   # or dear-imgui-glow
dear-imgui-winit = "0.8"

Application Runner (Recommended for Quick Start)

[dependencies]
dear-app = "0.8"  # Includes dear-imgui-rs, wgpu backend, and docking support

Extensions

[dependencies]
# Plotting
dear-implot = "0.8"      # 2D plotting
dear-implot3d = "0.8"    # 3D plotting

# 3D Gizmos
dear-imguizmo = "0.8"         # Standard 3D gizmo + GraphEditor
dear-imguizmo-quat = "0.8"    # Quaternion-based gizmo

# Node Editor
dear-imnodes = "0.8"

# File Browser
dear-file-browser = "0.8"  # Native dialogs + ImGui file browser

# Reflection-based UI helpers
dear-imgui-reflect = "0.8"

Reflection-based UI (dear-imgui-reflect)

dear-imgui-reflect lets you derive ImGuiReflect on your structs/enums and automatically get Dear ImGui editors for them. It is inspired by the C++ ImReflect library but implemented in pure Rust on top of dear-imgui-rs.

Typical flow:

use dear_imgui_reflect as reflect;
use reflect::ImGuiReflect;
use reflect::ImGuiReflectExt;

#[derive(ImGuiReflect, Default)]
struct Settings {
    #[imgui(slider, min = 0, max = 100)]
    volume: i32,
    fullscreen: bool,
}

fn ui_frame(ui: &reflect::imgui::Ui, settings: &mut Settings) {
    ui.input_reflect("Settings", settings);
}

Build Strategy

• Default: build from source on all platforms. Prebuilt binaries are optional and off by default.
• Windows: we publish prebuilt packages (MD/MT, with/without freetype). Linux/macOS may have CI artifacts but are not used automatically.
• Opt-in prebuilt download from Release: enable either the crate feature prebuilt or set <CRATE>_SYS_USE_PREBUILT=1. Otherwise builds only use prebuilt when you explicitly point to them (e.g., <CRATE>_SYS_LIB_DIR or <CRATE>_SYS_PREBUILT_URL).

Env vars per -sys crate:

• <CRATE>_SYS_LIB_DIR — link from a dir containing the static lib
• <CRATE>_SYS_PREBUILT_URL — explicit URL to .a/.lib or .tar.gz (always honored)
• <CRATE>_SYS_USE_PREBUILT=1 — allow auto download from GitHub Releases
• <CRATE>_SYS_PACKAGE_DIR — local dir with .tar.gz packages
• <CRATE>_SYS_CACHE_DIR — cache root for downloads/extraction
• <CRATE>_SYS_SKIP_CC — skip C/C++ compilation
• <CRATE>_SYS_FORCE_BUILD — force source build
• IMGUI_SYS_USE_CMAKE / IMPLOT_SYS_USE_CMAKE — prefer CMake when available; otherwise cc
• CARGO_NET_OFFLINE=true — forbid network; use only local packages or repo prebuilt

Freetype: enable once anywhere. Turning on freetype in any extension (imnodes/imguizmo/implot) propagates to dear-imgui-sys. When using a prebuilt dear-imgui-sys with freetype, ensure the package manifest includes features=freetype (our packager writes this).

Quick examples (enable auto prebuilt download):

• Feature: cargo build -p dear-imgui-sys --features prebuilt
• Env (Unix): IMGUI_SYS_USE_PREBUILT=1 cargo build -p dear-imgui-sys
• Env (Windows PowerShell): $env:IMGUI_SYS_USE_PREBUILT='1'; cargo build -p dear-imgui-sys

Compatibility (Latest)

The workspace follows a release-train model. The table below lists the latest, recommended combinations. See docs/COMPATIBILITY.md for full history and upgrade notes.

Core

Backends

Application Runner

Extensions

Note: if you need wgpu = 27 (or an older toolchain), use the 0.7.x train. The latest core patch is dear-imgui-rs 0.7.1 (core-only); the rest of the workspace crates remain at 0.7.0.

Maintenance rules

• Upgrade dear-imgui-sys together with all -sys extensions to avoid C ABI/API drift.
• dear-imgui-rs upgrades may require minor changes in backends/extensions if public APIs changed.
• Backend external deps (wgpu/winit/glow) have their own breaking cycles and may drive backend bumps independently.

CI (Prebuilt Binaries)

• Workflow: .github/workflows/prebuilt-binaries.yml
  • Inputs:
    • tag (release) or branch (manual; default main)
    • crates: comma-separated list (all, dear-imgui-sys, dear-implot-sys, dear-imnodes-sys, dear-imguizmo-sys)
  • Artifacts (branch builds) or Release assets (tag builds) include .tar.gz packages named: dear-<name>-prebuilt-<version>-<target>-static[-mt|-md].tar.gz
  • Release download URLs default to owner/repo configured in tools/build-support/src/lib.rs. Override via env: BUILD_SUPPORT_GH_OWNER, BUILD_SUPPORT_GH_REPO.

Version & FFI

• FFI layer is generated from the cimgui “docking” branch matching Dear ImGui v1.92.5.
• We avoid the C++ ABI by using the C API + bindgen. The safe layer mirrors imgui-rs style (RAII + builder).

Crates (workspace)

dear-imgui-rs/         # Safe Rust bindings (renamed from dear-imgui)
dear-imgui-sys/        # cimgui FFI (docking; ImGui v1.92.5)
backends/
  dear-imgui-wgpu/     # WGPU renderer
  dear-imgui-glow/     # OpenGL renderer
  dear-imgui-winit/    # Winit platform
dear-app/              # Application runner (Winit + WGPU + docking + themes)
extensions/
  dear-imguizmo/       # ImGuizmo + pure‑Rust GraphEditor
  dear-imnodes/        # ImNodes (node editor)
  dear-implot/         # ImPlot (2D plotting)
  dear-implot3d/       # ImPlot3D (3D plotting)
  dear-imguizmo-quat/  # ImGuIZMO.quat (quaternion gizmo)
  dear-file-browser/   # File dialogs (rfd) + pure ImGui browser
  dear-imgui-reflect/  # Reflection-based UI helpers for dear-imgui-rs

WebAssembly (WASM) support

This workspace includes an import-style WASM build that reuses a separate cimgui provider module (imgui-sys-v0) and shares a single WebAssembly.Memory between the Rust app (wasm-bindgen) and the provider.

Status:

• The web demo (dear-imgui-web-demo) is wired up and runs on wasm32-unknown-unknown.
• The core UI + WGPU backend are supported; clipboard, raw draw callbacks and multi-viewport remain disabled on wasm for safety.
• Font atlas access on wasm is available behind an experimental feature flag.
• Import-style WASM bindings and the xtask wasm-bindgen-* / web-demo / build-cimgui-provider helpers are developed on main and shipped in the 0.7.x release train; for 0.6.x on crates.io, use a git dependency on this repository if you need these flows.

Prerequisites:

• Rust target:
  • rustup target add wasm32-unknown-unknown
• wasm-bindgen CLI (version must match the crate’s dependency):
  • cargo install -f wasm-bindgen-cli --version 0.2.105
• wasm-tools (used by xtask web-demo to patch memory imports/exports):
  • cargo install -f wasm-tools
• Emscripten SDK (emsdk) for building the cimgui provider:
  • Install emsdk and run its env script (emsdk_env.*) or set EMSDK so that emcc/em++ are on PATH.

Quick start (web demo):

# 1) Generate wasm bindings for dear-imgui-sys (optional; xtask will also
#    generate them on-demand if missing, using import module name imgui-sys-v0)
cargo run -p xtask -- wasm-bindgen imgui-sys-v0

# 2) Build the main wasm module + JS glue (optionally enable experimental fonts)
cargo run -p xtask -- web-demo --features experimental-fonts

# 3) Build the cimgui provider (emscripten) and import map
cargo run -p xtask -- build-cimgui-provider

# 4) Serve and open in the browser
python -m http.server -d target/web-demo 8080
# Then open http://127.0.0.1:8080

Notes:

• The provider build emits:
  • target/web-demo/imgui-sys-v0.wasm and imgui-sys-v0.js
  • imgui-sys-v0-wrapper.js (ESM wrapper) and an import map entry mapping "imgui-sys-v0" to "./imgui-sys-v0-wrapper.js".
• xtask web-demo:
  • Patches the wasm-bindgen output to import memory from env.memory and export it.
  • Patches the JS glue to pass globalThis.__imgui_shared_memory to env.memory.
• Font atlas mutation on wasm is guarded by the feature:
  • dear-imgui-rs/wasm-font-atlas-experimental
  • examples-wasm/experimental-fonts turns this on for the web demo only.

For more details and troubleshooting, see docs/WASM.md.

Limitations

• Multi-viewport support
  • SDL3 + OpenGL3: supported via upstream C++ backends (imgui_impl_sdl3 + imgui_impl_opengl3).
    • Example: cargo run -p dear-imgui-examples --bin sdl3_opengl_multi_viewport --features multi-viewport,sdl3-opengl3
  • winit + WGPU: experimental only; not supported for production use (feature dear-imgui-wgpu/multi-viewport-winit).
    • Native only, enabled on Windows/macOS/Linux. Linux is currently untested.
      • To use in your own app, enable:
        • dear-imgui-rs/multi-viewport
        • dear-imgui-winit/multi-viewport
        • dear-imgui-wgpu/multi-viewport-winit and call Context::enable_multi_viewport().
      • Test example: cargo run -p dear-imgui-examples --bin multi_viewport_wgpu --features multi-viewport
      • Editor-style docking example also supports this mode: cargo run -p dear-imgui-examples --bin game_engine_docking --features multi-viewport
  • winit + OpenGL (glow/glutin): no official multi-viewport stack at the moment. Use SDL3 + OpenGL3 / SDL3 + Glow if you need multi-viewport OpenGL.
  • SDL3 + WGPU: experimental multi-viewport on native via Rust WGPU renderer + SDL3 platform backend; wasm/WebGPU remains single-window.
    • Example (native multi-viewport): cargo run -p dear-imgui-examples --bin sdl3_wgpu_multi_viewport --features sdl3-wgpu-multi-viewport
    • Example (single window): cargo run -p dear-imgui-examples --bin sdl3_wgpu --features sdl3-platform
• WebAssembly (WASM): Supported via the import-style build described above; some features (clipboard, raw draw callbacks, multi-viewport) remain disabled on wasm.

Related Projects

If you're working with graphics applications in Rust, you might also be interested in:

• asset-importer - A comprehensive Rust binding for the latest Assimp 3D asset import library, providing robust 3D model loading capabilities for graphics applications
• boxdd - Safe, ergonomic Rust bindings for Box2D v3.

Acknowledgments

This project builds upon the excellent work of several other projects:

• Dear ImGui by Omar Cornut - The original C++ immediate mode GUI library
• imgui-rs - Provided the API design patterns and inspiration for the Rust binding approach
• easy-imgui-rs by rodrigorc
• imgui-wgpu-rs - Provided reference implementation for WGPU backend integration
