System Architecture

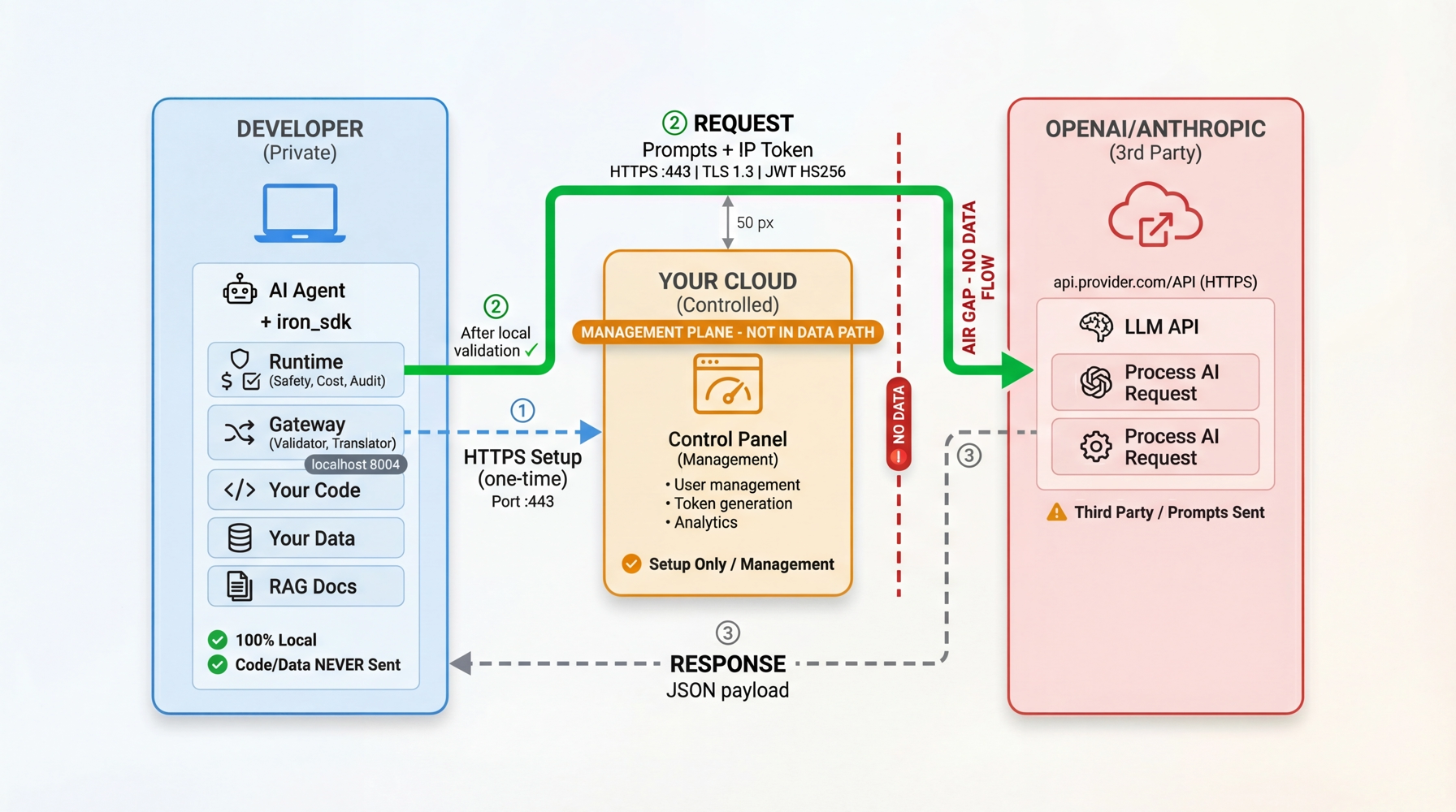

Visual Guide:

• Left (Developer Zone): Agent, iron_sdk, Runtime (Safety/Cost/Audit), Gateway - 100% local
• Middle (Management Plane): Control Panel - NOT in data path
• Right (Provider Zone): LLM provider receives only prompts with IP Token

See root readme for detailed architecture explanation.

Deployment Modes

Pilot/Demo Mode (Current):

• Single Rust process (localhost:8080)
• Shared iron_runtime_state (DashMap + SQLite) with iron_runtime
• WebSocket for real-time dashboard updates
• No authentication (localhost-only, trusted dashboard)

Production Mode (Post-Pilot):

• Distributed deployment (iron_control_schema + PostgreSQL, Redis pub/sub)
• Telemetry ingestion endpoints (POST /v1/telemetry/events)
• Full authentication and rate limiting

Health Check:

• GET /api/health - Server health status

Authentication (Protocol 014):

• POST /api/v1/auth/login - User authentication
• POST /api/v1/auth/refresh - Refresh JWT token
• POST /api/v1/auth/logout - User logout
• POST /api/v1/auth/validate - Validate JWT token

User Management:

• POST /api/v1/users - Create user
• GET /api/v1/users - List users
• GET /api/v1/users/:id - Get user details
• DELETE /api/v1/users/:id - Delete user
• PUT /api/v1/users/:id/suspend - Suspend user
• PUT /api/v1/users/:id/activate - Activate user
• PUT /api/v1/users/:id/role - Change user role
• POST /api/v1/users/:id/reset-password - Reset password

API Token Management (Protocol 014):

• POST /api/v1/api-tokens - Create new API token
• POST /api/v1/api-tokens/validate - Validate API token (public endpoint)
• GET /api/v1/api-tokens - List all tokens (requires auth)
• GET /api/v1/api-tokens/:id - Get token details
• POST /api/v1/api-tokens/:id/rotate - Rotate token secret
• DELETE /api/v1/api-tokens/:id - Revoke token
• PUT /api/v1/api-tokens/:id - Update token metadata

Agent Management (Protocol 010):

• POST /api/v1/agents - Create agent
• GET /api/v1/agents - List agents
• GET /api/v1/agents/:id - Get agent details
• PUT /api/v1/agents/:id - Update agent
• DELETE /api/v1/agents/:id - Delete agent
• GET /api/v1/agents/:id/tokens - Get agent tokens

Provider Key Management:

• POST /api/v1/providers - Create provider key
• GET /api/v1/providers - List provider keys
• GET /api/v1/providers/:id - Get provider key
• PUT /api/v1/providers/:id - Update provider key
• DELETE /api/v1/providers/:id - Delete provider key
• POST /api/v1/projects/:project_id/provider - Assign provider to project
• DELETE /api/v1/projects/:project_id/provider - Unassign provider from project

Key Fetch (API Token Auth):

• GET /api/v1/keys - Fetch provider key by API token

Usage Analytics (FR-8):

• GET /api/v1/usage/aggregate - Get aggregate usage metrics
• GET /api/v1/usage/by-project/:project_id - Get usage by project
• GET /api/v1/usage/by-provider/:provider - Get usage by provider

Budget Limits (FR-9):

• POST /api/v1/limits - Create budget limit
• GET /api/v1/limits - List all limits
• GET /api/v1/limits/:id - Get limit details
• PUT /api/v1/limits/:id - Update limit
• DELETE /api/v1/limits/:id - Delete limit

Request Traces (FR-10):

• GET /api/v1/traces - List request traces
• GET /api/v1/traces/:id - Get trace details

Budget Control (Protocol 005 & 012):

• POST /api/v1/budget/handshake - Agent budget handshake
• POST /api/v1/budget/report - Report usage
• POST /api/v1/budget/refresh - Refresh budget
• POST /api/v1/budget/requests - Create budget request
• GET /api/v1/budget/requests - List budget requests
• GET /api/v1/budget/requests/:id - Get budget request
• PATCH /api/v1/budget/requests/:id/approve - Approve request
• PATCH /api/v1/budget/requests/:id/reject - Reject request

Analytics (Protocol 012):

• POST /api/v1/analytics/events - Post analytics event
• GET /api/v1/analytics/spending/total - Total spending
• GET /api/v1/analytics/spending/by-agent - Spending by agent
• GET /api/v1/analytics/spending/by-provider - Spending by provider
• GET /api/v1/analytics/spending/avg-per-request - Average spending
• GET /api/v1/analytics/budget/status - Budget status
• GET /api/v1/analytics/usage/requests - Usage requests
• GET /api/v1/analytics/usage/tokens/by-agent - Token usage by agent
• GET /api/v1/analytics/usage/models - Model usage

Test Coverage: 379 tests (100% pass rate)

• Unit tests: Token validation, usage calculations, limit enforcement, agent management
• Integration tests: Full API contract validation across all endpoints (tokens, agents, analytics, auth, users)
• Corner case tests: DoS protection, NULL byte injection, concurrency, malformed JSON
• Security tests: SQL injection, XSS, command injection, path traversal
• Protocol tests: Protocol 005 budget control (26 tests), Protocol 010 agents (39 tests), Protocol 012 analytics (30 tests), Protocol 014 tokens (111 tests)

Run tests:

# Level 1: Unit + integration tests
w3 .test l::1

# Level 3: Tests + doc tests + clippy
w3 .test l::3

Manual testing: See tests/manual/readme.md for comprehensive test procedures

Defense-in-Depth Architecture:

• Layer 1: Type-safe validation at API boundary (ValidatedUserId/ValidatedProjectId newtypes)
• Layer 2: Database CHECK constraints for runtime enforcement
• Layer 3: Comprehensive test coverage (353 tests, attack scenarios included)

Protections:

• DoS prevention: 1-500 character limits on all string inputs (issue-001)
• NULL byte injection prevention: Validation rejects embedded null characters (issue-002)
• Database isolation: In-memory SQLite per test for deterministic execution (issue-003)
• Atomic operations: SQLite IMMEDIATE transactions prevent race conditions
• Input validation: Malformed JSON, wrong Content-Type, invalid HTTP methods rejected

Version: 0.5 (2025-12-12) Implementation: ✅ COMPLETE (Protocol 014 Tokens + Protocol 010 Agents + Protocol 012 Analytics + Phases 1-5 QA) Test Coverage: 379 tests (100% pass rate, 0 clippy warnings, 0 regressions)

• Protocol 014 (API Tokens): 111 tests including validate endpoint
• Protocol 010 (Agents): 39 tests (Phase 2 complete)
• Protocol 012 (Analytics): 30 tests (Phase 4 complete)
• Protocol 005 (Budget): 26 tests
• Security & corner cases: 173 tests Verification: All critical deliverables complete, Phase 1-4 at 100%, Phase 5 QA ongoing

Completed Phases:

• Phase 1: Protocol 014 API Tokens (10/11 deliverables, 91% - CLI stub remaining)
• Phase 2: Protocol 010 Agents API Foundation (100% complete)
• Phase 4: Protocol 012 Analytics API (100% complete)

Next Steps: Complete Phase 3 enhancements (templates, batch ops, search/filtering), Phase 5 QA completion (performance testing, documentation)

Build Backend Docker Image

# From workspace root
docker build -f module/iron_control_api/Dockerfile -t iron-backend:latest .

# Check image size
docker images iron-backend:latest
# Expected: ~50-60MB compressed

Run Backend Container (Standalone)

docker run -d \
  -p 3000:3000 \
  -e DATABASE_URL="postgresql://iron_user:password@postgres:5432/iron_tokens" \
  -e JWT_SECRET="your-secret-min-32-chars" \
  -e IRON_DEPLOYMENT_MODE="production" \
  -e RUST_LOG=info \
  --name iron-backend \
  iron-backend:latest

Run with Docker Compose

See ../../docker-compose.yml for full stack deployment (PostgreSQL + Backend + Frontend).

# Start all services
docker compose up -d

# View backend logs
docker compose logs -f backend

# Check backend status
docker compose ps backend

Health Check

curl http://localhost:3000/api/health

# Expected response:
# {"status":"healthy","database":"connected"}

Environment Variables

Troubleshooting

Issue: Container exits immediately Solution: Check DATABASE_URL is valid and database is accessible. Run docker logs iron-backend to see startup errors.

Issue: Health check fails Solution: Ensure database migrations have run. Check database connectivity with docker exec iron-backend curl localhost:3000/api/health.

Issue: Permission denied errors Solution: Container runs as non-root user (UID 1000). Ensure any mounted volumes have correct permissions.

Multi-Stage Build Details

The Dockerfile uses multi-stage builds for security and efficiency:

Stage 1 (Builder): rust:1.75-slim-bookworm

• Installs build dependencies (pkg-config, libssl-dev)
• Copies workspace and builds release binary
• Output: /app/target/release/iron_control_api_server

Stage 2 (Runtime): debian:bookworm-slim

• Installs only runtime dependencies (ca-certificates, libssl3, curl)
• Copies binary from builder stage
• Creates non-root user (UID 1000)
• Final image: ~50MB (vs ~2GB with build tools)

Related Documentation

• Docker Compose Architecture - Design details
• Getting Started Guide § Deploy Control Panel - Quickstart
• Deployment Guide - Production procedures

Responsibilities: Provides REST API and WebSocket endpoints for programmatic control of Iron Cage runtime (agent lifecycle, monitoring, metrics) and real-time dashboard communication. Enables external tools, CI/CD pipelines, and web dashboards to start agents, monitor execution, and receive live updates via standardized HTTP/WebSocket interfaces. Supports Pilot Mode (localhost, shared iron_runtime_state) and Production Mode (distributed, PostgreSQL + Redis). Requires Rust 1.75+, all platforms supported, integrates with iron_runtime for orchestration and iron_runtime_state for persistence.

In Scope:

• REST API for token management (FR-7): Create, rotate, revoke, list API tokens
• REST API for usage analytics (FR-8): Query usage by project, provider, aggregates
• REST API for budget limits (FR-9): CRUD operations for budget constraints
• REST API for request traces (FR-10): List and retrieve execution traces
• WebSocket server for real-time dashboard updates
• CORS support for browser-based dashboards
• Request validation and error handling (DoS protection, NULL byte injection prevention)
• Comprehensive test coverage (353 tests, 100% pass rate)

Out of Scope:

• API authentication (JWT tokens) - Deferred to Post-Pilot (spec.md § 2.2)
• Rate limiting (per-IP, per-key) - Deferred to Post-Pilot (spec.md § 2.2)
• Distributed API gateway (multi-node) - Deferred to Post-Pilot (spec.md § 2.2)
• GraphQL interface - Pilot uses REST only (spec.md § 2.2)
• Webhook notifications (external systems) - Pilot uses WebSocket only (spec.md § 2.2)
• Agent lifecycle REST endpoints - See iron_cli
• Runtime orchestration - See iron_runtime
• State persistence - See iron_runtime_state

Source Files

Notes:

• Entries marked 'TBD' require manual documentation
• Entries marked '⚠️ ANTI-PATTERN' should be renamed to specific responsibilities
