neighborlist-rs

High-performance neighborlist construction for atomistic systems in Rust with Python bindings.

CI PyPI version License

Features

  • High-performance Cell Lists: O(N) scaling for large systems.
  • Batched Processing: Parallelized neighbor list construction across multiple systems (ideal for GNN training).
  • Multi-Cutoff pass: Generate multiple neighbor lists (e.g., short-range GNN, long-range dispersion) in a single optimized pass.
  • SIMD Acceleration: Explicit wide SIMD kernels for small systems and brute-force fallbacks.
  • Auto-Box Inference: Automatic bounding box calculation for isolated molecules.
  • Robust PBC support: Minimum image convention for orthorhombic and triclinic cells.
  • ASE Integration: Direct support for ase.Atoms objects.
  • Zero-copy NumPy integration: Efficient data exchange via PyO3 and rust-numpy.

Installation

From PyPI

pip install neighborlist-rs

From Source

pip install .

Usage (Python)

Refer to PYTHON_API.md for full documentation and advanced usage examples.

Quick Start (with ASE)

import neighborlist_rs
from ase.build import molecule

atoms = molecule("C2H5OH")
# Single pass search directly from ASE Atoms
result = neighborlist_rs.build_from_ase(atoms, cutoff=5.0)

edge_index = result["edge_index"]  # (2, M) array of atom pairs
shifts = result["shift"]           # (M, 3) periodic shift vectors

Manual Search

import neighborlist_rs
import numpy as np

positions = np.array([[0, 0, 0], [1, 1, 1]], dtype=float)
# None for cell means isolated system (non-PBC)
result = neighborlist_rs.build_neighborlists(None, positions, cutoff=5.0)

Usage (Rust)

Refer to RUST_API.md for detailed Rust documentation.

Single System Search

use neighborlist_rs::build_neighborlists;

let positions = [[0.0, 0.0, 0.0], [1.0, 0.0, 0.0]];
let cutoff = 1.5;
let result = build_neighborlists(&positions, cutoff, None, true).unwrap();

Performance

neighborlist-rs is designed for high-performance atomistic simulations, outperforming established baselines across a wide range of system sizes and conditions.

Comprehensive Benchmarks

(Measured on CPU: ARM64 8-core / NVIDIA GB10 proxy. Results in wall-clock time ms.)

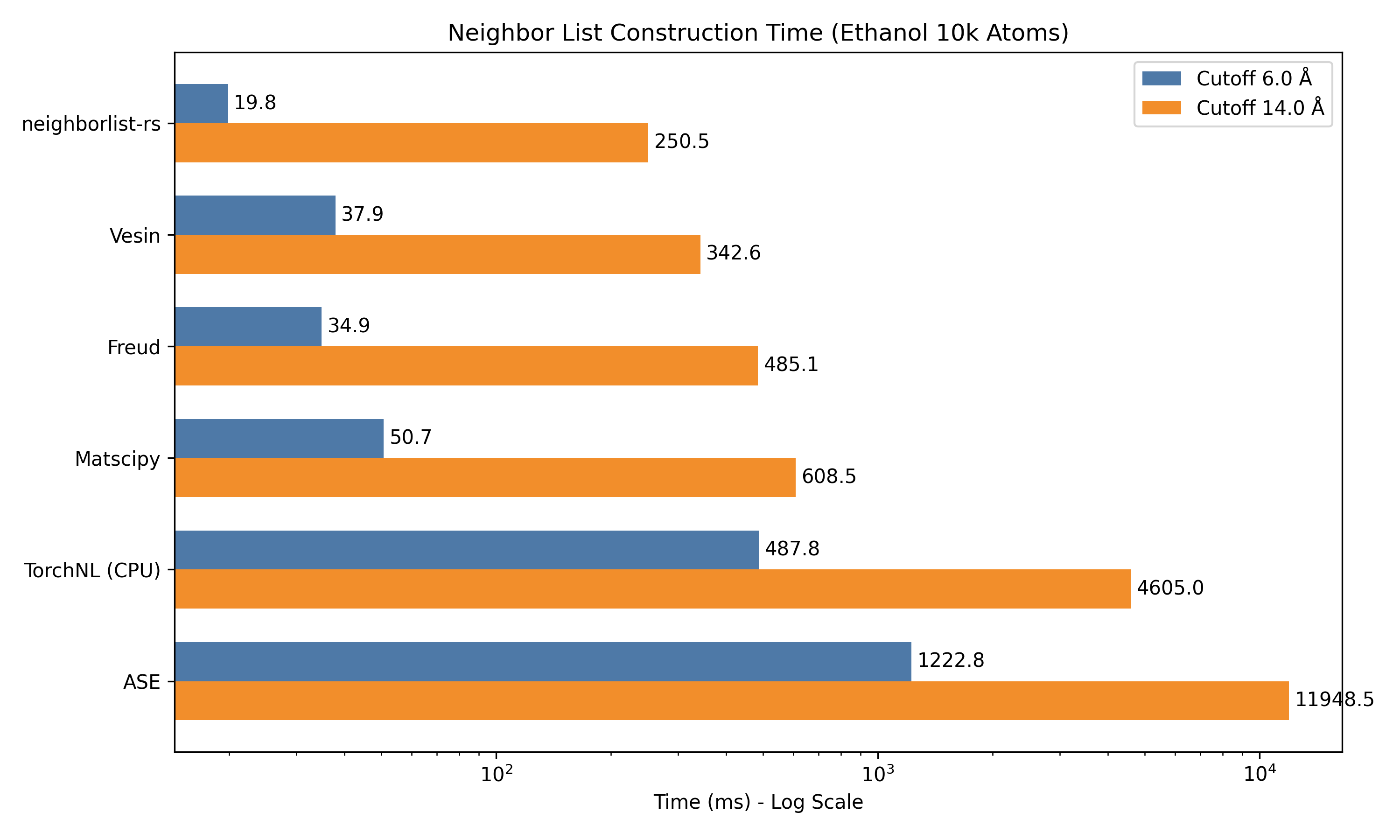

1. Single System Scaling

Single System Benchmark

The table below shows the average wall-clock time (in milliseconds) to construct the neighbor list. Lower is better.

System Cutoff ASE Matscipy Freud Vesin neighborlist-rs
Isolated 1k 6.0 Å 101.5 3.3 4.1 1.7 3.0
14.0 Å 2688.1 10.2 12.2 5.8 2.8
Ethanol 1k 6.0 Å 149.9 5.9 2.7 3.0 5.3
(PBC) 14.0 Å 6677.0 130.8 N/A* 64.0 37.6
Ethanol 10k 6.0 Å 1222.8 50.7 34.9 37.9 19.8
(PBC) 14.0 Å 11948.5 608.5 485.1 342.6 250.5

*Freud requires box dimensions > 2x cutoff.

Detailed Raw Timing Summary
======================================== Single System Benchmarks ========================================

>>> CUTOFF: 6.0 Angstroms <<<

--- Isolated 1k (N=1000, rc=6.0) ---
Library              | Device | Time (ms)  | Std
-------------------------------------------------------
 ASE                 | CPU   | 101.48     | 0.76
 Matscipy            | CPU   | 3.28       | 0.01
 Freud               | CPU   | 4.13       | 0.85
 Vesin               | CPU   | 1.72       | 0.02
 RS (1 thread)       | CPU   | 3.16       | 0.47
 RS (Parallel)       | CPU   | 2.97       | 0.26
 TorchCluster        | CPU   | 2.49       | 0.11
 TorchCluster        | GPU   | 18.51      | 1.05
 TorchNL             | CPU   | 16.34      | 3.01
 TorchNL             | GPU   | 6.52       | 0.80

--- Ethanol 1k (PBC) (N=1008, rc=6.0) ---
Library              | Device | Time (ms)  | Std
-------------------------------------------------------
 ASE                 | CPU   | 149.92     | 15.19
 Matscipy            | CPU   | 5.91       | 0.01
 Freud               | CPU   | 2.71       | 0.59
 Vesin               | CPU   | 2.99       | 0.02
 RS (1 thread)       | CPU   | 5.44       | 0.11
 RS (Parallel)       | CPU   | 5.35       | 0.01
 TorchCluster        | ---   | N/A (No PBC support) |
 TorchNL             | CPU   | 31.72      | 1.27
 TorchNL             | GPU   | 18.85      | 4.69

--- Ethanol 10k (PBC) (N=10008, rc=6.0) ---
Library              | Device | Time (ms)  | Std
-------------------------------------------------------
 ASE                 | CPU   | 1222.77    | 2.29
 Matscipy            | CPU   | 50.70      | 0.21
 Freud               | CPU   | 34.93      | 2.36
 Vesin               | CPU   | 37.92      | 0.56
 RS (1 thread)       | CPU   | 20.61      | 0.68
 RS (Parallel)       | CPU   | 19.82      | 0.10
 TorchCluster        | ---   | N/A (No PBC support) |
 TorchNL             | CPU   | 487.77     | 8.08
 TorchNL             | GPU   | 134.06     | 27.62


>>> CUTOFF: 14.0 Angstroms <<<

--- Isolated 1k (N=1000, rc=14.0) ---
Library              | Device | Time (ms)  | Std
-------------------------------------------------------
 ASE                 | CPU   | 2688.05    | 5.74
 Matscipy            | CPU   | 10.16      | 0.03
 Freud               | CPU   | 12.20      | 2.00
 Vesin               | CPU   | 5.82       | 0.06
 RS (1 thread)       | CPU   | 2.89       | 0.07
 RS (Parallel)       | CPU   | 2.82       | 0.06
 TorchCluster        | CPU   | 9.14       | 0.51
 TorchCluster        | GPU   | 18.36      | 0.82
 TorchNL             | CPU   | 81.01      | 4.50
 TorchNL             | GPU   | 24.08      | 1.98

--- Ethanol 1k (PBC) (N=1008, rc=14.0) ---
Library              | Device | Time (ms)  | Std
-------------------------------------------------------
 ASE                 | CPU   | 6676.95    | 4.42
 Matscipy            | CPU   | 130.84     | 0.63
 Vesin               | CPU   | 63.95      | 0.47
 RS (1 thread)       | CPU   | 37.62      | 0.22
 RS (Parallel)       | CPU   | 37.88      | 0.15
 TorchCluster        | ---   | N/A (No PBC support) |
 TorchNL             | CPU   | 522.08     | 8.28
 TorchNL             | GPU   | 90.39      | 2.55

--- Ethanol 10k (PBC) (N=10008, rc=14.0) ---
Library              | Device | Time (ms)  | Std
-------------------------------------------------------
 ASE                 | CPU   | 11948.54   | 273.39
 Matscipy            | CPU   | 608.45     | 2.64
 Freud               | CPU   | 485.05     | 3.00
 Vesin               | CPU   | 342.63     | 1.84
 RS (1 thread)       | CPU   | 250.45     | 5.98
 RS (Parallel)       | CPU   | 264.32     | 3.57
 TorchCluster        | ---   | N/A (No PBC support) |
 TorchNL             | CPU   | 4605.02    | 71.68
 TorchNL             | GPU   | 790.87     | 9.78

2. Multi-Cutoff Pass [6.0, 14.0] Å

Benchmark for generating two neighbor lists simultaneously (e.g., GNN + Dispersion). (System: Ethanol 10k atoms)

Library Strategy Time (ms)
neighborlist-rs Single Pass (Native) 313
Vesin Filtered (14.0 -> 6.0) 414
Freud Filtered (14.0 -> 6.0) 491
Matscipy Filtered (14.0 -> 6.0) 667
ASE Filtered (14.0 -> 6.0) 11680

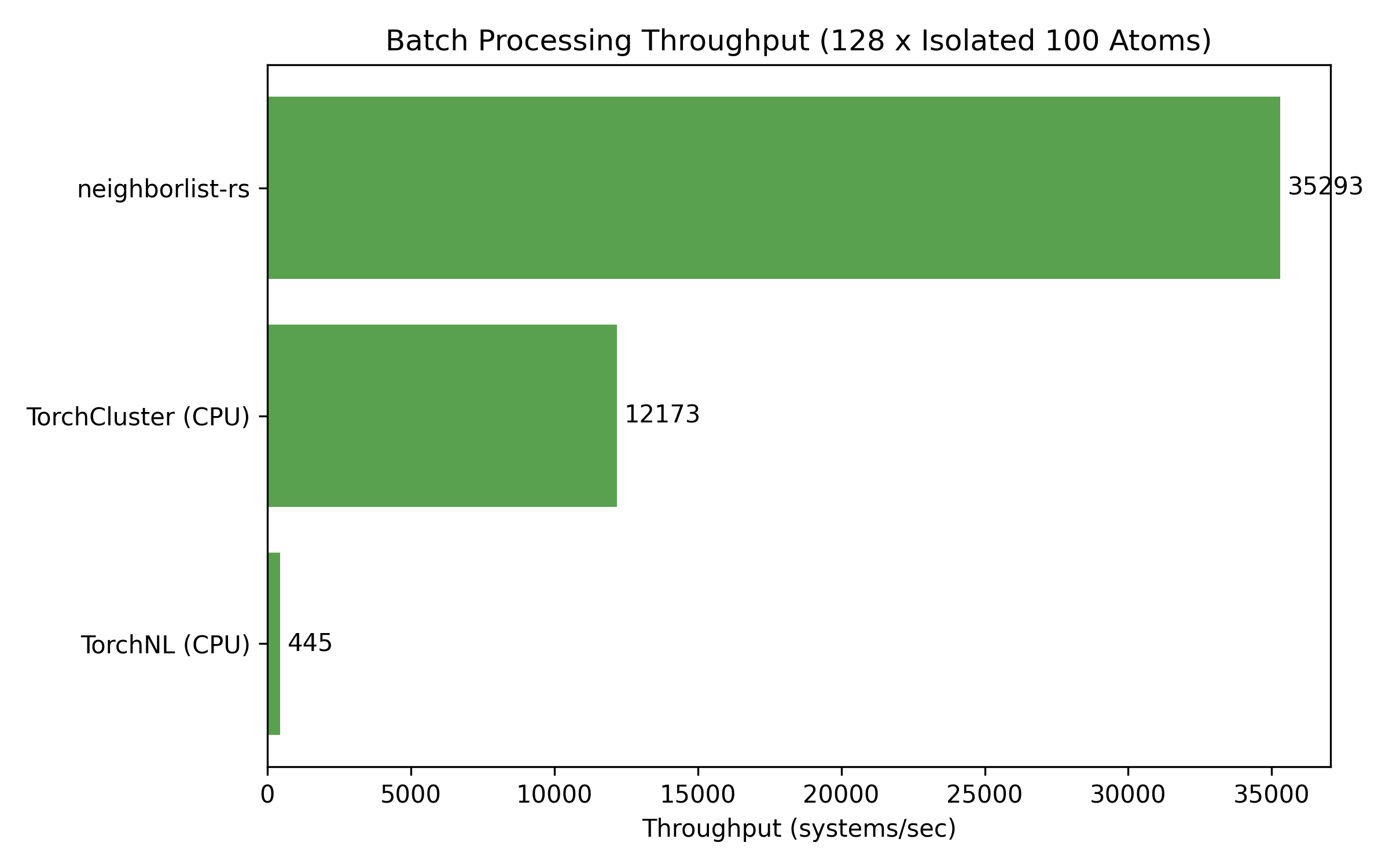

3. Batch Throughput (GNN Workloads)

Batch Throughput Benchmark

Throughput in systems per second for batches of isolated 100-atom molecules.

Batch Size neighborlist-rs TorchCluster TorchNL
1 34,477 11,756 525
32 38,198 11,047 481
128 35,293 12,173 445

Note: TorchCluster does not support Periodic Boundary Conditions (PBC).

Key Optimizations

  • Spatial Sorting: Uses Z-order (Morton) indexing to improve cache locality.
  • Dynamic Configuration: Runtime-tunable thresholds for switching between SIMD Brute-Force and Cell Lists.
  • Two-Pass Search: Minimizes heap allocations by pre-calculating neighbor counts.
  • Cross-Platform SIMD: Optimized for both x86_64 (AVX2/FMA) and aarch64 (NEON).

Verification

Run Rust tests:

cargo test

Run Python tests:

pytest tests/

License

Licensed under either of:
