pingmon

Real-time ping monitor with beautiful ASCII charts, TTL display, and comprehensive statistics.

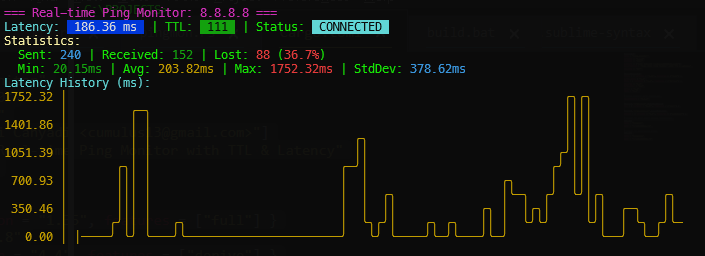

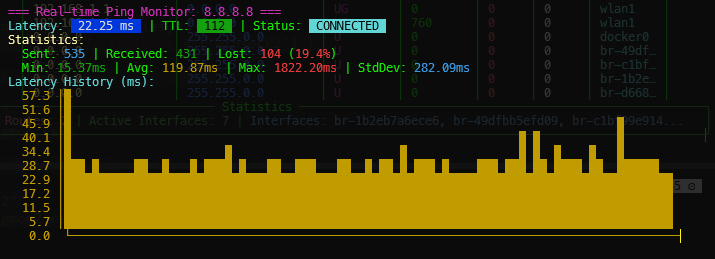

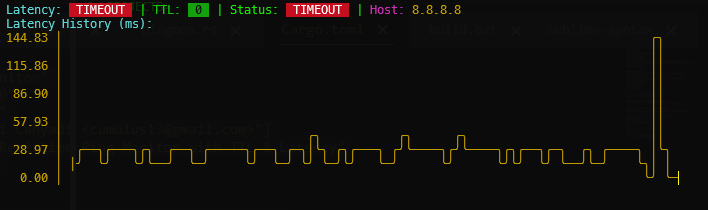

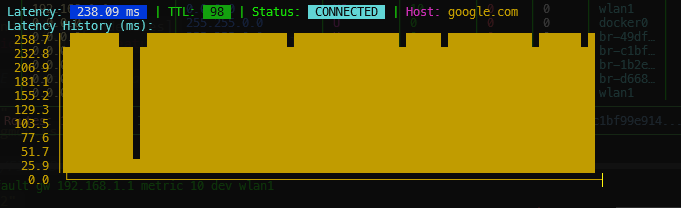

Screenshot

Features

✨ Two Chart Types:

• pingmon - Line chart using ASCII characters
• pingmon2 - Vertical bar chart with filled blocks

📊 Real-time Visualization:

• Live latency chart that updates every ping
• Automatic terminal width detection
• Customizable chart height and width

📈 Comprehensive Statistics:

• Min/Max/Average latency
• Standard deviation
• Packet loss percentage
• Sent/Received/Lost packet counts
• TTL (Time To Live) display

🎨 Beautiful Output:

• Color-coded status indicators
• Clean, modern interface
• Multiple display modes (dynamic, static, chart-only)

Installation

From crates.io

cargo install pingmon

From source

git clone https://github.com/cumulus13/pingmon
cd pingmon
cargo build --release

The binaries will be in target/release/:

• pingmon (line chart)
• pingmon2 (bar chart)

Usage

Basic Usage

# Ping Google DNS (8.8.8.8) with line chart
pingmon

# Ping specific host with bar chart
pingmon2 1.1.1.1

# Ping with custom interval
pingmon google.com -i 0.5

Command Line Options

USAGE:
    pingmon [OPTIONS] [HOST]
    pingmon-bar [OPTIONS] [HOST]

ARGS:
    <HOST>    Target host to ping [default: 8.8.8.8]

OPTIONS:
    -H, --height <HEIGHT>      Chart height [default: 15 for pingmon, 12 for bar]
    -W, --width <WIDTH>        Chart width (0 = auto) [default: 0]
    -i, --interval <INTERVAL>  Interval between pings (seconds) [default: 1.0]
    -s, --static-mode          Simple line-by-line output without chart
    -c, --chart-only           Only show chart and current status
    -h, --help                 Print help information
    -V, --version              Print version information

Examples

# Ping with custom chart size
pingmon 8.8.8.8 -H 20 -W 100

# Fast pinging (every 0.5 seconds)
pingmon google.com -i 0.5

# Static mode (no chart, just lines)
pingmon cloudflare.com --static-mode

# Chart-only mode (minimal display)
pingmon-bar 1.1.1.1 --chart-only

# Tall bar chart
pingmon-bar -H 25

Display Modes

1. Dynamic Mode (Default)

Full-featured display with header, statistics, and chart.

=== Real-time Ping Monitor: 8.8.8.8 ===

Latency:  20.07 ms  | TTL:  112  | Status:  CONNECTED

Statistics:
  Sent: 45 | Received: 45 | Lost: 0 (0.0%)
  Min: 18.23ms | Avg: 20.15ms | Max: 25.67ms | StdDev: 1.45ms

Latency History (ms):
[ASCII chart here]

2. Static Mode (-s)

Simple line-by-line output, perfect for logging.

Pinging 8.8.8.8 ...
seq=1 20.07ms ttl=112 (loss=0.0% avg=20.07ms)
seq=2 19.85ms ttl=112 (loss=0.0% avg=19.96ms)
seq=3 21.34ms ttl=112 (loss=0.0% avg=20.42ms)

3. Chart-Only Mode (-c)

Minimal display with just status and chart.

Latency:  20.07 ms  | TTL:  112  | Status:  CONNECTED  | Host: 8.8.8.8

Latency History (ms):
[ASCII chart here]

Chart Types

Line Chart (pingmon)

Latency History (ms):
   25.0 ┤     ╭╮
   20.0 ┤ ╭───╯╰─╮
   15.0 ┼─╯      ╰─
   10.0 ┤

Bar Chart (pingmon-bar)

Latency History (ms):
  39.6 │    █    █
  26.4 │█████████████
  13.2 │█████████████
   0.0  └──────────────

Requirements

• Operating System: Linux, macOS, or Windows
• Privileges:
  • Linux/macOS: Requires sudo or CAP_NET_RAW capability
  • Windows: Run as Administrator

Linux Capability Setup (Recommended)

Instead of using sudo every time, you can set the capability:

# After installation
sudo setcap cap_net_raw+ep $(which pingmon)
sudo setcap cap_net_raw+ep $(which pingmon-bar)

How It Works

pingmon uses:

• surge-ping for efficient ICMP ping implementation
• rasciichart for beautiful ASCII line charts
• colored for terminal color output
• tokio for async runtime
• Custom bar chart rendering for filled graphs

The tool automatically:

• Detects terminal width and adjusts chart size
• Handles both IPv4 and IPv6 addresses
• Resolves hostnames to IP addresses
• Displays TTL (Time To Live) values
• Calculates comprehensive statistics

Stopping the Monitor

Press Ctrl+C to stop. Final statistics will be displayed:

✓ Stopped

Final Statistics:
  Packets: Sent = 45, Received = 45, Lost = 0 (0.0%)
  Latency: Min = 18.23ms, Avg = 20.15ms, Max = 25.67ms, StdDev = 1.45ms

Troubleshooting

Permission Denied

Linux/macOS:

# Option 1: Use sudo
sudo pingmon 8.8.8.8

# Option 2: Set capability (recommended)
sudo setcap cap_net_raw+ep ~/.cargo/bin/pingmon

Windows:

• Run Command Prompt or PowerShell as Administrator

Host Not Found

Make sure the hostname is correct:

pingmon google.com  # Correct
pingmon gogle.com   # Will fail - typo

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

License

MIT License - see LICENSE file for details

Author

Hadi Cahyadi - cumulus13@gmail.com

Support me on Patreon

Changelog

v0.1.0 (Initial Release)

• Real-time ping monitoring with ASCII charts
• Two chart types: line and bar
• Comprehensive statistics
• Multiple display modes
• Auto terminal width detection
• TTL display
• Color-coded output
