thag_profiler

An accurate lightweight cross-platform profiling library for Rust applications, offering time and/or memory profiling with minimal boilerplate and your choice of color schemes.

An independent offshoot of the thag(_rs) script runner and REPL.

Why choose thag_profiler?:

• quick and easy to set up and run

• clear and accurate interactive flamegraphs

• time and memory profiling

• detailed profiling option for memory hotspots

• any mix of synchronous and asynchronous code

• pure Rust with no platform dependencies

---

Time profile in inferno "Rust" color scheme. Click on image for interactive version with clickable bars and search.

---

Instrumentation:

• #[enable_profiling] attribute for your lowest-level profiled function, typically main

• #[profiled] attribute for other functions

• profile! ... end! macro pairs for code sections.

  Each of these items offers a range of options for any combination of time, memory summary and memory detail profiling.

Instrumentation tools:

• thag_instrument command to add the attributes to every function and method of a .rs file

• thag_uninstrument command to remove them.

Output analysis:

• thag_profile to select, filter and display:

  • interactive flamegraphs, flamecharts, comparisons

  • function statistics for time profiles

  • allocation statistics and size distribution for memory profiles

---

Filtered memory profile in inferno "memory" color scheme with count_words function profiled in detail. Click on image for interactive version with clickable bars and search.

---

🎬 Demo: Profiled from scratch in 1 minute

Part 1: Instrument, profile and start analysis (1 min 0 sec)

Click to watch: The demo shows building and running an instrumented program, then generating an interactive flamegraph

Tip: View in full-screen mode for best legibility

Use f to toggle full-screen mode.

📋 **Detailed steps shown in video**

1. Instrument - Auto-add profiling with thag_instrument

2. View changes - See the diff in vimdiff

3. Run - Execute the instrumented program as normal

   We run with thag because it's a stand-alone thag script

4. Analyze 1: select - Select analysis type and data with thag_profile

   We could have chosen memory and/or a sequential flamechart instead.

5. Analyze 2: generate - Select flamegraph color scheme, generate and open in browser

• Since the lightweight asciinema tool can't see the browser, we exit at this point and return to view it interactively in Part 2.

Part 2: View and interact with the flamegraph (21 sec)

📋 **Try this**

1. Hover to see details and see the following displayed for each one as a tooltip and also in the bottom area:

   a. function name, preceded by async if applicable

   b. elapsed time in microseconds

   c. percentage of total elapsed time that this bar accounts for.

2. Search for functions Find the count_words function:

   • Click on the Search link in the top right corner, enter count in the dialog that pops up, and press Enter. Bars with matching text will display in pink. Notice that the count_words function appears in two different call stacks.

3. Expand bars and undo Click on one of the pink bars and see how it expands to the full width of the screen, with its call stack below it.

   Click on the main or all bar at the bottom to restore the full view.

   Click on the other pink bar and see it do the same, showing its slightly different call stack below it.

4. Reset view To remove the pink highlighting, click on the Reset link.

Interactive flamegraph showing execution time across nested function calls. Click image for interactive version with clickable bars and search.

---

Features

• Zero-cost abstraction: No runtime overhead when thag_profiler's profiling features are turned off.

• Execution time profiling: Low-overhead profiling to highlight hotspots. Profiler overhead is stripped out for accuracy even at small scale.

• Accurate memory profiling: Memory allocations are accurately tracked at line number level and ring-fenced from profiler code so that the latter can't distort the measurements. Allocations may be summarized by function or section, or broken out in detail where desired.

• Function and section profiling: Profiling can be applied to any number of specific non-overlapping code sections, down to single instructions.

• Async support: Seamlessly works with tokio or other async code.

• Automatic instrumentation: Tools to quickly bulk add and remove profiling annotations to/from source code without losing comments or formatting.

• Interactive flamegraphs and flamecharts: Visualize performance bottlenecks with inferno flamegraphs and flamecharts, and easily do before-and-after comparisons using inferno differential flamegraphs.

• Graph filtering: Filter out dead or unwanted sections of flamegraphs and flamecharts for a better view.

• Proc macro based: All instrumentation is provided via proc macros that provide a simple flexible interface, precise control, ring-fencing of profiler code from user code and zero-cost abstractions when profiling features are turned off.

• Development or release build profiling: Although thag_profiler is focused on the development cycle, it supports profiling release builds, subject to enabling debug information and to any limitations imposed by the backtrace crate.

• One-line full detailed transitive memory profiling option: Track all memory allocations and deallocations for your project and dependencies with a single #[enable_profiling(runtime)] and the THAG_PROFILER environment variable.

• Intelligent output naming: Output files are named with the source program, timestamp and profile type for quick and easy selection.

• Cross-platform: Works on macOS, Linux and Windows.

Installation

Add thag_profiler to your Cargo.toml:

For inactive instrumentation, no features are needed:

[dependencies]
thag_profiler = "0.1.0"

To activate time profiling alone, you need the time_profiling feature:

thag_profiler = { version = "0.1.0", features = ["time_profiling"] }

For comprehensive profiling (memory and optionally time), you need the full_profiling feature:

thag_profiler = { version = "0.1.0", features = ["full_profiling"] }

Install the profiling tools:

# Install all tools
cargo install thag_profiler --features=tools

# Or install tools individually
cargo install thag_profiler --features=instrument_tool --bin thag_instrument
cargo install thag_profiler --features=instrument_tool --bin thag_uninstrument
cargo install thag_profiler --features=analyze_tool --bin thag_profile

Getting Started

1. Instrument Your Code for Profiling

You can instrument your code permanently or semi-permanently, and activate profiling via a feature only as and when needed.

a. Automatically instrument your code:

Replace 2021 below with your project's Rust edition:

thag_instrument 2021 < path/to/your/file.rs > path/to/your/instrumented_file.rs

• Ensure your original source is backed up or committed before instrumenting.

• Replace 2021 with your project's Rust edition.

• Do NOT redirect the output to your source file.

• Compare generated code with the original to ensure correctness before overwriting any original code with instrumented code.

Repeat for all modules you want to profile.

... AND / OR ...

b. Manually add profiling annotations:

Imports

use thag_profiler::{enable_profiling, profile, profiled};

Enable profiling

NB: exactly one function in your app should be annotated with #[enable_profiling]. Normally this is fn main, but it is possible to annotate a different function instead, to narrow the scope of profiling to a section of particular interest.

// Enable profiling for the program.
// To disable it while keeping the instrumentation, you can either
// disable the profiling features in the `thag_profiler` dependency
// or simply specify `#[enable_profiling(no)]`.
#[enable_profiling]
fn main() -> u64 {
    // Function code...
    42
}

Instrument a function

// Instrument a function
#[profiled]
fn expensive_calculation() -> u64 {
    // Function code...
    42
}

Profile a section

// Profile a specific section with `profile!` and matching `end!`
#[profiled] // Optional
fn complex_operation() {
    // Some code...

    profile!(expensive_part);
    // Expensive operation
    ...
    end!(expensive_part);

    // More code...
}

Profile a section of an async function

For a section in a profiled async function, it's best to add async_fn as a second argument, as explained in the Best Practices section of this document.

// Profile a specific section of an async function
#[profiled] // Optional
async fn complex_async_operation() {
    // Some code...

    profile!(expensive_part, async_fn);
    // Expensive operation
    ...
    end!(expensive_part);

    // More code...
}

Profile to the end of a function with unbounded

// Profile the remainder of a function
#[profiled] // Optional
fn complex_operation() {
    // Some code...

    // Must be scoped to end of function
    profile!(rest_of_function, unbounded);
    // All code to end of function will be profiled
}

// 🚫 INCORRECT:
#[profiled] // Optional
fn complex_operation() {
    // Some code...

    {
        // ⚠️ Unbounded keyword misused here
        profile!(rest_of_block, unbounded); // 🚫
    }   // ⚠️ Profile will be dropped here unknown to allocation tracker

    // ⚠️ The following section profiling may not work correctly due to the above
    profile!(another_section);
    // Expensive operation
    ...
    end!(another_section);
}

2. Enable the Profiling Feature

In order to activate profiling, the desired thag_profiler feature - time_profiling or full_profiling - must be enabled at build time in one of two ways:

1. Via a features keyword on the thag_profiler dependency in the manifest (Cargo.toml or thag toml block).

2. Via a command-line --features option.

In regular Cargo projects

1. Cargo.toml only:

Either expose it directly in the dependency:

[dependencies]
thag_profiler = { version = "0.1", features = ["full_profiling"] }

or via a feature of your own project, with a default:

[dependencies]
thag_profiler = "0.1.0"

[features]
my_profiling = ["thag_profiler/time_profiling"]
default = [my_profiling]

OR

2. Cargo.toml and command line:

Either via a feature of your own project as above, but without specifying a default:

[dependencies]
thag_profiler = "0.1.0"

[features]
my_profiling = ["thag_profiler/time_profiling"]

then run with:

cargo run --features my_profiling

OR directly via the command line:

[dependencies]
thag_profiler = "0.1.0"

then run with:

cargo run --features thag_profiler/time_profiling

In scripts run with the thag(_rs) script runner

This section applies only to the thag(_rs) script runner thag, of which thag_profiler is an offshoot. You can safely ignore it if you're not using thag(_rs).

Snippets may be profiled provided they have a function to be annotated with #[enable_profiling], since the generated fn main will be unannotated. For an example see demo/factorial_ibig_product_instr.rs.

When using thag_profiler in thag scripts, for a start you have the same two options as above, except for using a toml block in place of a Cargo.toml. You also have a third option using only dependency inference and configuration:

1. Manifest (toml block) only:

Either expose it directly in the dependency:

/*[toml]
[dependencies]
thag_profiler = { version = "0.1", features = ["time_profiling"] }
*/

or via a feature of your own script, with a default:

/*[toml]
[dependencies]
thag_profiler = "0.1.0"

[features]
my_profiling = ["thag_profiler/full_profiling"]
default = [my_profiling]
*/

OR

2. Manifest (toml block) and command line:

Sample script configuration:

Either via a feature of your own script as above, but without specifying a default:

/*[toml]
[dependencies]
thag_profiler = "0.1.0"

[features]
# For time profiling only
my_profiling = ["thag_profiler/time_profiling"]

# OR for comprehensive profiling (time + memory)
my_profiling = ["thag_profiler/full_profiling"]
*/

then run with:

cargo run bank/mem_prof.rs --features=my_profiling

OR directly via the command line:

/*[toml]
[dependencies]
thag_profiler = "0.1.0"
*/

then run with:

cargo run bank/mem_prof.rs --features thag_profiler/full_profiling

OR

3. Dependency inference and/or default feature configuration:

The dependency may be omitted and will be inferred either from imports (use thag_profiler::{enable_profiling, ...};) or if you use the qualified forms of the macros, for example #[thag_profiler::enable_profiling].

The feature may be configured as as a default in ~/.config/thag_rs/config.toml, which you can conveniently edit via thag -C.

[dependencies.feature_overrides.thag_profiler]
required_features = ["full_profiling"]

Alternatively you can specify it in a toml block in your script, even in combination with dependency inference:

/*[toml]
[features]
default = ["thag_profiler/full_profiling"]
*/

As the examples show, you may pair any dependency option with any feature option, as long as thag is able to pick up both the thag_profiler dependency itself and the desired thag_profiler feature.

3. Run Your Application

Ensure that the thag_profiler feature you need is enabled by one of the methods discussed above. If using cargo run from the command line, and the desired feature is not specified by the manifest, you need to do so via the --features argument of cargo run.

If your app is annotated with #[enable_profiling(runtime)], specify the environment variable THAG_PROFILER=[profile_type][,[output_dir][,[debug_level][,memory_detail]]]*.

*In other words, there are 4 parameters, all optional. Comma separators are required as placeholders but trailing commas may be dropped.

If using thag to run a script annotated with #[enable_profiling(runtime)] and features not specified in a toml block or configured:

THAG_PROFILER=both,,announce thag --features=thag_profiler/full_profiling demo/document_pipeline_profile.rs -ft

If using thag to run a script annotated with #[enable_profiling] and features specified in a toml block or configured via thag -C:

thag demo/document_pipeline_profile.rs -ft

4. Analyze Results

When you run your application with profiling enabled, thag_profiler generates folded stack files in the current working directory, unless that location is overridden by the second argument of a THAG_PROFILER environment variable used in conjunction with #[enable_profiling(runtime)].

Use the included analysis tool to visualize the results:

thag_profile <output_dir>

By default:

thag_profile .

This opens an interactive menu to explore your profiling data and display various flamegraphs, flamecharts or simple statistics.

thag_profile uses two extremely helpful third-party crates:

• inquire to help you select output for analysis and optionally filter out any unwanted functions.

• inferno to display the results in your browser as interactive flamegraphs and flamecharts.

For time profiles you can also choose to display function statistics (inclusive or exclusive of children according to the .folded file naming convention), and ranked by total duration or call frequency.

Flamegraphs are not offered for *-inclusive.folded files, since the bar lengths and displayed values would show multiple counting of descendants (double counting at every level of the stack), so these files are only useful for the statistics report.

For memory profiles you can also choose to display memory statistics and an allocation size analysis.

Detailed Usage

Manually Instrumenting Code for Profiling

While the thag_instrument tool should very quickly provide good default instrumentation, this section describes how to fine-tune the profiling to suit your needs.

In addition to enabling the appropriate thag_profiler feature, you must enable profiling in your code by adding the #[enable_profiling] attribute to the top-level function to be profiled, which is preferably but not necessarily the main function.

If using this attribute to annotate any function other than main, you need to take extra care. Annotating more than one function with #[enable_profiling] is not supported and behavior is undefined in such a case. The same applies to annotating an async function or a descendant of an async function with #[enable_profiling], if this could cause overlap in their execution. It is safer to do the conventional thing and annotate the function in question with #[profiled] and the main function with #[enable_profiling].

NB: The #[enable_profiling] attribute also profiles the function it annotates, so the #[profiled] attribute need not and should not be specified on the same function.

#[enable_profiling] arguments

The following optional arguments are available:

• both: Specifies both time and memory profiling.

• memory: Specifies memory profiling only.

• time: Specifies time profiling only.

• no: Disables profiling as a convenient alternative to disabling the profiling features of the thag_profiler dependency. Unlike disabling the features, this only provides zero-cost abstraction for the current function. However, at runtime the profile instantiation code generated by the other macros immediately returns None instead of Some(Profile) when profiling is disabled, so the overhead is still very slight.

• yes: (default) Enables profiling according to the feature specified for the thag_profiler dependency, which must be either full_profiling or time_profiling.

• runtime: Specifies that a detailed specification is to be provided at runtime via the THAG_PROFILER environment variable. This is the only option that allows you to influence profiling at runtime. This includes switching profiling off, thus trading the efficiency of zero-cost abstraction for the flexibility of runtime configuration. That being said, the overhead is still very small, for the reasons stated under the no option above.

• function(...): Configures profiling options specific to the current function. Within the parentheses, you can specify any of the arguments that would be accepted by the #[profiled] attribute: time, mem_summary, mem_detail, both, global, test

Examples:

Basic memory profiling:

#[enable_profiling(memory)]
fn main() {
...
}

Enable memory profiling for the program, together with detailed memory profiling for the function itself. Detailed memory profiling picks up all descendant functions as a matter of course, but you may still choose to annotate any of them with #[profiled] for time profiling:

#[enable_profiling(memory, function(mem_detail))]
fn process_data() {
...
}

Runtime global profiling with function-specific time and detailed memory profiling:

#[enable_profiling(runtime, function(time, mem_detail))]
fn main() {
...
}

Format of the THAG_PROFILER environment variable to be used with #[enable_profiling(runtime)]

The THAG_PROFILER environment variable has 4 optional positional comma-separated arguments.

If #[enable_profiling(runtime)] is specified but either the environment variable or its first argument is missing, no profiling is done.

Format:

THAG_PROFILER=[profile_type][,[output_dir][,[debug_level][,memory_detail]]]

All parameters are optional. Commas are required as placeholders, but trailing commas may be dropped.

Parameter	Description
profile_type	both, memory, time, none (default)
output_dir (optional)	Output dir for .folded files. Default: current directory
debug_level (optional)	none (default), announce, or quiet. Logs to temp_dir()/thag_profiler/.... Requires debug_logging feature
memory_detail (optional)	true = detailed .folded; false (default) = minimal

Examples:

THAG_PROFILER=both,$TMPDIR,announce,true cargo run

...specifies both memory and time profiling, .folded files to $TMPDIR, debug log path to be written to user program output, and full memory detail allocation and deallocation tracking (caution: may be slow) into separate .folded files.

THAG_PROFILER=time cargo run

...specifies time profiling only, .folded files to current directory, no debug log, no detailed memory files as not applicable to time profiling.

THAG_PROFILER=memory,,quiet thag demo/document_pipeline_profile_minimal.rs  -ft

...runs thag demo script document_pipeline_profile_minimal.rs with forced rebuild (-f) and timings (-t), memory profiling only, internal debug logging without announcing the log file path, and no detailed output .folded files. Note that debug logging requires the debug_logging feature of the thag_profiler dependency to be enabled, otherwise the debug_log! macro compiles to () to provide a zero-cost abstraction.

The function annotated with #[enable_profiling] is taken to be the root of the profiling callstack.

#[enable_profiling]
fn main() {
    // Your program...
}

Function Profiling with #[profiled]

Add the #[profiled] attribute to any function you want to profile:

use thag_profiler::profiled;

Regular functions:

#[profiled]
fn expensive_calculation() -> u64 {
    // Function code...
}

Works with async functions too:

#[profiled]
async fn fetch_data() -> Result<String, Error> {
    // Async operations...
}

Methods in implementations:

impl MyStruct {
    #[profiled]
    fn process(&self, data: &[u8]) {
        // Method code...
    }
}

Attribute Options

The #[profiled] attribute macro accepts several arguments that configure how profiling is performed.

Usage

#[profiled]
fn my_function() { ... }

With arguments:

#[profiled(time, mem_detail)]
fn my_memory_intensive_function() { ... }

Available Arguments

Argument	Description	Feature Required
time	Enables time/performance profiling	time_profiling
mem_summary	Enables basic memory profiling	full_profiling
mem_detail	Enables detailed memory profiling	full_profiling
both	Shorthand to enable both time and memory profiling	full_profiling
global	Uses the global profile type setting	Either
test	Special flag for testing - enables clone of profile for test access	Either

Notes

• Argument Order: The order of arguments doesn't matter - #[profiled(time, mem_detail)] is equivalent to #[profiled(mem_detail, time)].

• Default Behavior: If no arguments are provided, the macro defaults to using the global profile type setting.

• Feature Flags: Memory-related profiling options require the full_profiling feature to be enabled. If only time_profiling is enabled, all memory profiling arguments are ignored.

• Combined Profiling: Using both time and any memory option (for example, mem_detail or mem_summary) is equivalent to using both.

Examples

Basic time profiling:

#[profiled(time)]
fn time_sensitive_function() { ... }

Detailed memory profiling:

#[profiled(mem_detail)]
fn memory_intensive_function() { ... }

Both time and memory profiling:

#[profiled(both)]
fn complex_function() { ... }

Or equivalently:

#[profiled(time, mem_summary)]
fn complex_function() { ... }

Use the global profile type:

#[profiled(global)]
fn standard_function() { ... }

Default - equivalent to global:

#[profiled]
fn simple_function() { ... }

Special case for tests:

#[profiled(time, test)]
async fn function_for_testing() { ... }

Testing Async Functions

For testing async functions with the #[profiled] attribute, use one of these approaches:

1. Add the test argument: #[profiled(time, test)]

2. Add a _test suffix to your function name: async fn my_function_test()

Both methods allow accessing the profile variable inside async function bodies during tests.

The #[profiled] attribute accepts various flags to control profiling behavior:

// Override the profile type for a specific function
#[profiled(both)]
fn allocating_function() { /* ... */ }

Order of attributes

If #[enable_profiling] is used in conjunction with either #[tokio::main] or #[async_std::main], then #[enable_profiling] must appear after the other attribute.

Interaction with features

If only the time_profiling feature is enabled, any memory profiling-specific arguments are invalid because they depend on the full_profiling feature. In this case they are ignored rather than raise an error.

For example:

#[cfg(feature = "time_profiling")]
#[profiled(mem_detail)] // 🚫 Argument clashes with feature

Code Section Profiling with profile! and end!

Section profiling with the profile! and end! macros allows you to profile hotspots within a function, down to single instructions.

Rules

1. Global constraints take precedence: Section profiling modes are overridden by the program defaults set by #[enable_profiling].

2. Limited integration with functions: Profiled sections will have ancestors in the callstack, but no children. A function called from within a profiled section appears in flamegraphs, not as a child of the section but as a child of the parent function and a sibling of the section. This is because profiling hierarchies depend on built-in Rust backtraces, and sections are not a Rust feature but a thag_profiler artifact grafted on top of their parent function, and the complexity and overhead of transforming each backtrace to accommodate any sections is not considered worthwhile.

By the same token, there is no point in using profile!..end! purely to wrap a function for memory profiling, as memory allocations are only attributed once and as narrowly as possible, so they show up in the function and not in the section.

3. No section nesting or overlaps: Section profiles should not overlap or be nested in code. This is not checked, but memory allocations that fall within the scope of more than one section are attributed to only one of those sections rather than being double-counted.

Format

profile!(name[, flag1[, flag2[, ...]]]);

Parameters

• name: A valid Rust identifier to be expanded to the variable name of the Profile for the section
• flags: Optional comma-separated identifiers that control profiling behavior

Available Flags

Flag	Description
time	Enable time profiling for this section
mem_summary	Enable basic memory allocation tracking
mem_detail	Enable detailed memory allocation tracking
async_fn	Mark that this profile is for an async function
unbounded	This is equivalent to an end! macro at the end of the function

Profile Types

The macro automatically determines the type of profiling based on the flags provided:

• Time only: When only the time flag is present
• Memory only: When mem_summary or mem_detail is present without time
• Both: When time is combined with either mem_summary or mem_detail

Examples

Basic time profiling:

profile!(calculate_result, time);
// calculation code here
...
end!(calculate_result);

Memory usage summary:

profile!(load_data, mem_summary);
// data loading code here
...
end!(load_data);

Detailed memory tracking:

profile!(process_image, mem_detail);
// image processing code here
...
end!(process_image);

Both time and memory profiling:

profile!(generate_report, time, mem_detail);
// report generation code here
...
end!(generate_report);

Async function profiling:

profile!(fetch_data, time, async_fn);
// data fetching code here
...
end!(fetch_data);

Unbounded memory profile (must NOT be manually ended):

fn multi_part_function() {
    // other code here
    ...
    profile!(long_running_task, mem_summary, unbounded);
    // long running section to end of function
    ...
} // end of function

Notes

The macro captures source location information automatically for accurate profiling results.

Section profiling requires either:

1. Recommended: an end!(<identifier>) macro to drop the profile outside of user code and to mark the end of the section so that memory allocations can be accurately attributed to the correct section by line number. This macro invocation must not be outside the normal Rust scope of the profile! macro.

The identifier must be identical to the one used in the matching profile! macro call, as it is used to match up the two.

or:

2. An unbounded argument to allow the profile to be dropped at the end of the function and to assist memory profiling.

This is not preferred because:

a. The profile inevitably gets dropped in user code, leaving it up to the allocation tracker to identify and filter out its allocations in the first place. This is not as clean and precise as using the end! mechanism to ring-fence the profiler code, and thus creates more overhead and greater exposure to any potential loopholes in the filtering algorithm.

b. It has limited applicability and is open to misuse. It may only be used to profile the remainder of a function. For more limited scopes you must use an end! macro.

The 'unbounded` option may be dropped in future.

Conditional Profiling

You can conditionally enable profiling based on build configuration:

1. Function profiling examples

Only profile function when a feature is enabled:

#[cfg_attr(feature = "my_profile_feature", profiled)]
fn expensive_calculation() { /* ... */ }

Only profile function in debug builds:

#[cfg_attr(debug_assertions, profiled)]
fn complex_operation() { /* ... */ }

2. Section profiling example

Only profile section in debug builds:

fn process_data(data: &[u8]) {
    #[cfg(debug_assertions)]
    profile!(process_data);

    // Your code here...

    #[cfg(debug_assertions)]
    end!(process_data);

    ...
}

In more depth

Time Profiling

Time profiling measures the wall-clock time between profile creation and destruction, which closely approximates the time spent in the user code. It is async-compatible, has minimal overhead and is suitable for most performance investigations. It produces a regular *.folded file suitable for flamegraphs, flamecharts and function statistics exclusive of time spent in calls to other profiled functions, as well as an *-inclusive.folded file suitable only for function statistics inclusive of time spent in calls to other profiled functions. The analyzer handles these files accordingly.

Memory Profiling

thag_profiler memory profiling attempts to provide a practical and convenient solution to memory profiling that is compatible with async operation.

Memory profiling (available via the full_profiling feature) accurately tracks every heap allocation (and for global detailed profiling, deallocation) requested by profiled user code, including reallocations, using a global memory allocator in conjunction with attribute macros to exclude thag_profiler's own code from interfering with the analysis. It uses the official Rust backtrace crate to identify the source of the allocation or deallocation request.

Note: thag_profiler provides comprehensive memory tracking that includes allocator metadata, alignment overhead, and intermediate allocations during container growth. This may result in higher allocation counts compared to tools that only track payload data, but gives you the complete picture of your program's actual memory footprint.

One-Line Exhaustive Detailed Memory Profiling

A handy trick is that simply by annotating the main function of your project with #[enable_profiling(runtime)] and running it with THAG_PROFILER=memory,,,true you can get a fully detailed memory profile showing allocations and one showing deallocations. This also applies transitively to all the dependencies of your project!

Caution: this may be prohibitively slow, depending on your project, although the example below only took a few seconds.

A simple example of detailed memory profiling

Here we try the above trick on a thag(_rs) script that uses syn to print out an AST for a Rust source file. The code is available in the thag_rs project.

The script is demo/syn_dump_syntax_profile_syn.rs and we run it with thag to print out the syn AST for another, simple script called demo/hello_main.rs. Below is the execution showing the AST printout, followed by the detailed memory allocation profile for the run from thag_profile:

donf@MacBook-Air thag_rs % THAG_PROFILER=both,,announce,true thag demo/syn_dump_syntax_profile_syn.rs --timings -- demo/hello_main.rs

Skipping unnecessary generation step.  Use --force (-f) to override.
Skipping unnecessary cargo build step. Use --force (-f) to override.
──────────────────────────────────────────────────────────────────────
Thag Profiler debug log: /var/folders/rx/mng2ds0s6y53v12znz5jhpk80000gn/T/thag_profiler/syn_dump_syntax_profile_syn-20250521-105801-debug.log
is_profiling_enabled()? true, get_global_profile_type(): Both
File {
    shebang: None,
    attrs: [],
    items: [
        Item::Fn {
            attrs: [
                Attribute {
                    pound_token: Pound,
                    style: AttrStyle::Outer,
                    bracket_token: Bracket,
                    meta: Meta::NameValue {
                        path: Path {
                            leading_colon: None,
                            segments: [
                                PathSegment {
                                    ident: Ident {
                                        sym: doc,
                                        span: bytes(1..60),
                                    },
                                    arguments: PathArguments::None,
                                },
                            ],
                        },
                        eq_token: Eq,
                        value: Expr::Lit {
                            attrs: [],
                            lit: Lit::Str {
                                token: " Hello World as a program (posh Winnie-the-Pooh version)",
                            },
                        },
                    },
                },
            ],
            vis: Visibility::Inherited,
            sig: Signature {
                constness: None,
                asyncness: None,
                unsafety: None,
                abi: None,
                fn_token: Fn,
                ident: Ident {
                    sym: main,
                    span: bytes(129..133),
                },
                generics: Generics {
                    lt_token: None,
                    params: [],
                    gt_token: None,
                    where_clause: None,
                },
                paren_token: Paren,
                inputs: [],
                variadic: None,
                output: ReturnType::Default,
            },
            block: Block {
                brace_token: Brace,
                stmts: [
                    Stmt::Local {
                        attrs: [],
                        let_token: Let,
                        pat: Pat::Ident {
                            attrs: [],
                            by_ref: None,
                            mutability: None,
                            ident: Ident {
                                sym: other,
                                span: bytes(146..151),
                            },
                            subpat: None,
                        },
                        init: Some(
                            LocalInit {
                                eq_token: Eq,
                                expr: Expr::Lit {
                                    attrs: [],
                                    lit: Lit::Str {
                                        token: "World 🌍",
                                    },
                                },
                                diverge: None,
                            },
                        ),
                        semi_token: Semi,
                    },
                    Stmt::Macro {
                        attrs: [],
                        mac: Macro {
                            path: Path {
                                leading_colon: None,
                                segments: [
                                    PathSegment {
                                        ident: Ident {
                                            sym: println,
                                            span: bytes(169..176),
                                        },
                                        arguments: PathArguments::None,
                                    },
                                ],
                            },
                            bang_token: Not,
                            delimiter: MacroDelimiter::Paren(
                                Paren,
                            ),
                            tokens: TokenStream [
                                Literal {
                                    lit: "Hello, {other}!",
                                    span: bytes(178..195),
                                },
                            ],
                        },
                        semi_token: Some(
                            Semi,
                        ),
                    },
                ],
            },
        },
    ],
}
──────────────────────────────────────────────────────────────────────
Completed run in 4.44s
thag_rs completed processing script syn_dump_syntax_profile_syn.rs in 4.76s
donf@MacBook-Air thag_rs %

Global detailed memory profile in inferno "Rust" color scheme showing syn crate functions. Click on image for interactive version with clickable bars and search.

A project example of detailed memory profiling

Here is thag itself in REPL mode, profiled in the same way:

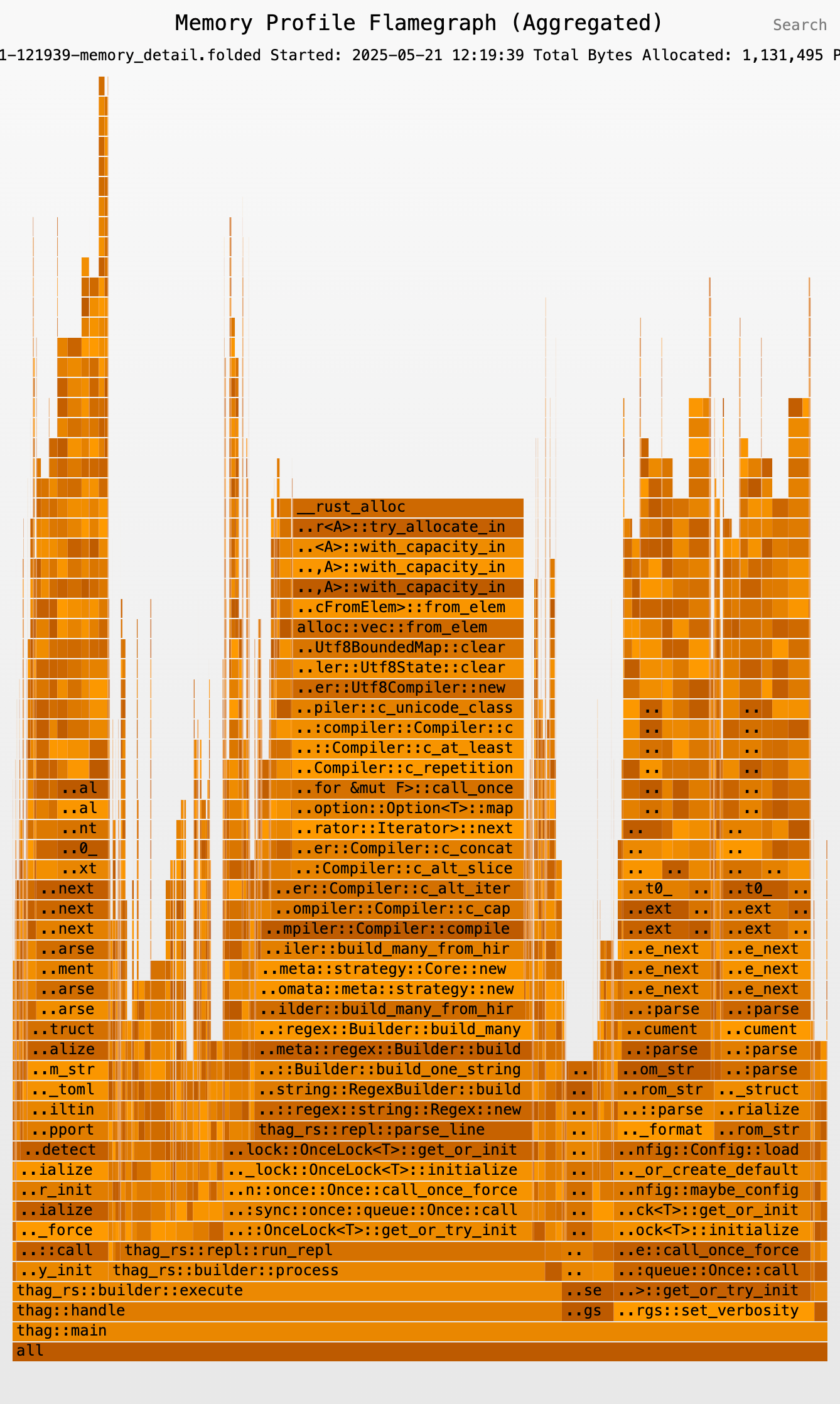

Detailed memory allocation profile in inferno "orange" color scheme showing all dependencies. Click on image for interactive version with clickable bars and search.

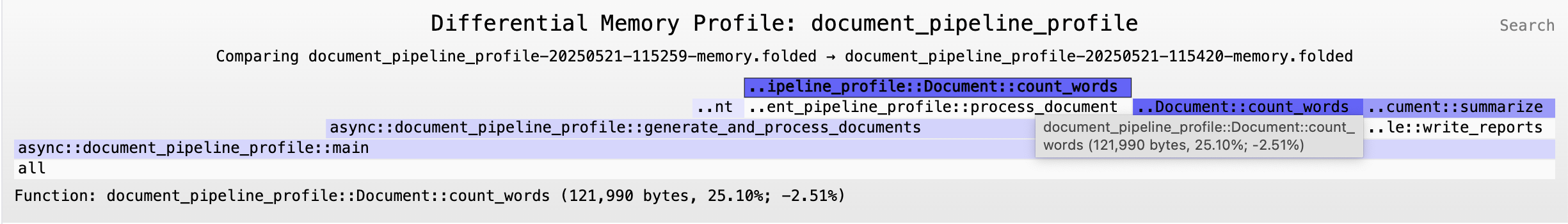

Before-and-After (Differential) Memory Profiling

The thag_profile tool supports inferno's differential profiling feature for both time and memory profiles. Simply select this option and the "before" and "after" .folded files.

Differential memory profile showing reduced allocations in blue. Click on image for interactive version with clickable bars and search.

Memory Profiling Limitations and Considerations

• Performance Impact: thag_profiler memory profiling introduces significant overhead compared to time profiling. Expect your application to run appreciably more slowly when memory profiling is enabled. It's strongly recommended to use memory profiling selectively for occasional health checks and targeted investigations rather than leave it enabled indefinitely.

• Comparison with Other Memory Profilers: thag_profiler aims to provide comprehensive memory tracking and may show higher allocation counts than some other profiling tools because it captures:

• Allocator metadata and alignment overhead

• Intermediate allocations during Vec/HashMap growth and reallocation

• Function-level aggregation of all allocations within profiled scopes

This comprehensive approach provides a more accurate picture of actual memory usage that your program experiences in production, including overhead that other tools might filter out.

• Mitigating Performance Impact with Optional Tracking Threshold Size: Detailed memory profiling in particular is obviously the slowest profiling option and may be prohibitively slow for some applications.

  To mitigate this, thag_profiler provides a SIZE_TRACKING_THRESHOLD=<bytes> environment variable allowing you to track only individual allocations that exceed the specified threshold size (default value 0). This is obviously at the cost of accuracy, particularly if your app mainly does allocations below the threshold. To get a good idea of a suitable threshold value, you can first do detailed memory profiling (cancel if you need to once you see significant detailed output being generated in the output directory). Then in the thag_profile tool, select the detailed output, then select Show Allocation Size Distribution. This needs to be the detailed allocations .folded file, because the normal memory profiling shows aggregated values per function rather than the detailed values being tracked.

  The catch-22 with overriding the default zero threshold is that if there are enough small allocations below the threshold to make a significant difference in profiling speed, those small allocations may themselves be worth investigating. So rather than screen them out, you may well get a better outcome by first identifying hotspots using summary profiling, and then doing very focused detailed profiling only on these, avoiding setting a threshold if at all possible.

  For accuracy it's recommended not to use the SIZE_TRACKING_THRESHOLD override if you don't have to.

• Custom Global Allocator: Memory profiling (the optional full_profiling feature) uses a custom global allocator to track memory allocations.

  1. This is incompatible with specifying your own global allocator in your application (#[global_allocator]), as Rust only allows one global allocator.

  2. Note about thread-local storage (TLS): The profiler is designed to be compatible with code that uses thread-local storage. If you encounter the error "fatal runtime error: the global allocator may not use TLS with destructors", please report it as a bug.

     In older versions of async_std (pre-1.10), there were known interactions that could cause this error in certain usage patterns. If you experience issues with a particular async runtime, consider trying alternatives like smol or tokio.

• Thread-Safety Considerations: Memory profiling uses global state protected by mutexes. While this works for most cases, extremely high-concurrency apps may experience contention.

• Potential Allocator Race Conditions in Async Environments: Unfortunately, Rust only allows a single global allocator (which thag_profiler refers to as the dispatcher), so profiler code must share this with user code. thag_profiler uses a thread-local variable to indicate to the dispatcher to use the system allocator for profiler code in place of the default "tracking" allocator.

The dispatcher delegates memory requests from user code to the tracking allocator, which records the point of origin in user code (the "allocation site") and the request type (allocation, deallocation or reallocation) and size, before in turn delegating the request to the Rust system allocator to honour the request. The dispatcher delegates requests from profiler code directly to the system allocator.

Thread-local storage is not a panacea, as tokio work stealing can cause a suspended task to resume on a different thread. This means that in an async environment, particularly under stress, the thread-local boolean variable that reflects the current allocator could end up out of sync with the workload it was intended to interact with, either causing user allocations to be processed through the system allocator and thus not be recorded, or causing profiler code allocations to be processed through the tracking allocator. The latter not only risks profiler code allocations being incorrectly recorded as user allocations, but risks causing the whole app to hang due to infinite recursion through the tracking allocator.

Should it be suspected that allocations are being processed through the wrong allocator, leading to inaccuracies, some mitigations you may consider are:

1. To use detailed profiling to reveal unexpected or missing allocations.

2. To compare results with another tool such as DHAT.

3. To reduce the number of profiled functions and sections, and if possible the number of threads, to the practical minimum in the final stages of profiling, in order to minimise contention.

4. To check for consistency in the processing of the same functions and sections over time under different load conditions and with different amounts of profiled code competing for the dispatcher.

5. If possible, to copy the relevant sections of code to a profiled thag script so as to study the allocations in isolation.

Fortunately, this potential issue has not shown up in unit testing, and results so far have been very consistent, so contention does not seem to be a significant issue in practice. However the potential for race conditions is a caveat when memory profiling in async environments.

• Complete Allocation Tracking: All allocations, including those from libraries and dependencies, are tracked and included in profiling data. This provides a comprehensive view of memory usage across your entire application stack, revealing hidden costs from dependencies like async runtimes.

Detailed memory profiling allows you to drill down into these allocations as well as the resulting deallocations.

• Peak memory allocation on flamegraphs and flamecharts: The peak bytes allocated total shown in the graph headers is simply calculated at the available granularity and may therefore be a gross over-estimate. For a normal summary memory graph this is not very accurate as in the absence of profiled child functions it assumes that memory allocated over the life of a profiled function is only deallocated at the end of the function. The global detailed flamegraph, which shows the relative lifespan of each allocation in the call stack, should give an accurate figure which may be much lower.

Profiling release builds

Although thag_profiler is focused on the development cycle, you may wish to do a profiling exercise on a release build. Since thag_profiler relies on the backtrace crate, see the entry for that crate on docs.rs for the backtrace considerations that may affect you. Specifying the following in your Cargo.toml or in the toml block of a thag script should generally work:

[profile.release]
debug = true
strip = false

You also need to provide the features information at build time as described in a previous section.

If you build your app with #[enable_profiling(runtime)], then at runtime you need to provide the THAG_PROFILER environment variable specifying the runtime parameters.

Windows Memory Profiling

For memory profiling on Windows, your application requires:

1. Debug information in the executable, which can be enabled with:

   [profile.release]
   debug = true
   strip = false


2. PDB files generated by the build must be distributed alongside the executable. These files contain the debug information needed for accurate profiling.

Async Compatibility

thag_profiler supports profiling async code with some considerations:

• Basic Time Profiling: Works well with the async runtimes tested including tokio and smol.

• Memory Profiling with Async: Memory profiling in async contexts is more complex:

  • Works with tokio and smol for most common patterns.

  • Has a (small?) degree of exposure to race conditions, as discussed above.

  • Examples of using thag_profiler in async contexts may be found at:

    • https://github.com/durbanlegend/thag_rs/demo/document_pipeline_profile.rs (tokio)

    • https://github.com/durbanlegend/thag_rs/demo/smol_chat_server_profile.rs (smol)

    • https://github.com/durbanlegend/thag_rs/demo/flume_async_profile.rs (async-std)

  • For best results in async code, use explicit section profiling with profile!(<section_name>, async)

Implementation Details

thag_profiler uses several internal mechanisms to track profiling data:

• Tracking allocations by line number of origin: Memory profiling attributes allocations to the correct point of origin ("allocation site") by matching the file, function and line number of the allocation site with the file, function and line number ranges of the profiles generated by the thag_profiler macros.

• Thread safety: The profiler uses atomic operations and mutex-protected shared state to coordinate profiling across threads, with one caveat already mentioned relating to dispatching of memory allocation.

• Guard objects: TaskGuard objects help manage the lifetime of profiling tasks and ensure proper cleanup when tasks complete.

• Profiler code ring-fencing: The profiler carefully isolates its own allocations and operations from user code through the use of a dual-allocator system. This ensures that profiling overhead doesn't contaminate the results, providing clean separation between the measurement apparatus and the code being measured.

Note that deallocations are not reported for normal memory profiling, as they invite a fruitless attempt to identify memory leaks by matching them up by function against the allocations, whereas the deallocations are often done by a parent function. However, deallocations are reported for detailed memory profiling in order to give a complete picture, so this is a better tool for identifying memory leaks, although still not a walk in the park.

Profiling data recording

The recording takes two forms:

a. For summary memory profiling, the allocations are attributed to a profile (a Profile instance representing an active execution of a function or code section) in a mutex-protected registry, by matching the allocation site against the registered active profiles. The allocation size is passed to the profile, which accumulates it. When the function completes execution the profile goes out of scope and is automatically dropped, and its drop trait method writes out the accumulated total to the -memory.folded file.

Time profiling also uses these same profiles, but in a simpler way: all that's needed is to record the duration between the activation and dropping of the profile.

In both cases, since the metrics for the function are measured over the lifetime of its profile instance, thag_profiler takes care to ensure that the profile lifetime coincides as closely as possible with the lifetime of the function, in order to ensure accurate measurement.

b. For detailed memory profiling, allocations and deallocations alike are not accumulated or even tracked back to a Profile, but immediately written with a lightly tidied-up stack to the -memory_detail.folded and -memory_detail_dealloc.folded files respectively.

Being the default, the tracking allocator is automatically used for user code and must not be used for profiler code.

To avoid getting caught up in the default allocator and causing recursion or polluting the user allocation data with its own allocations, all of the profiler's own code that runs during memory profiling execution is passed directly to the untracked System allocator in a closure or function via a with_sys_alloc() function (pub fn with_sys_alloc<T, F: FnOnce() -> T>(f: F) -> T).

Profile Output

Profiles generate "folded" stack traces in the output directory by default:

• your_program-<yyyymmdd>-<hhmmss>.folded: Time profiling data for graphs and stats reporting

• your_program-<yyyymmdd>-<hhmmss>-inclusive.folded: Time profiling data for stats reporting

• your_program-<yyyymmdd>-<hhmmss>-memory.folded: Summary memory allocation data

• your_program-<yyyymmdd>-<hhmmss>-memory_detail.folded: Detailed memory allocation data (if enabled in 4th argument of THAG_PROFILER with #[enable_profiling(runtime)])

• your_program-<yyyymmdd>-<hhmmss>-memory_detail_dealloc.folded: Detailed memory deallocation data (if enabled in 4th argument of THAG_PROFILER with #[enable_profiling(runtime)])

These files can be visualized with the included thag_profile or with tools like inferno-flamegraph or the beautiful speedscope.

thag_profile is recommended because it offers:

1. Correct handling of units.

2. File grouping and sorting for ease of selection and comparison.

3. Built-in file comparisons using inferno differential flamegraphs.

4. Filtering out of dead space in flamegraphs.

   a. Irrelevant substacks

   b. Dead parts of functions (as illustrated below)

Filtering Flamegraphs and Flamecharts

Unfiltered profile showing wasted space. inferno "yellow" color scheme. Click on image for interactive version with clickable bars and search.

---

The same .folded file, but with the dead section of main filtered out for a clearer view. inferno "aqua" color scheme. Click on image for interactive version with clickable bars and search.

Profiling Tools

thag_profiler includes three command-line tools for working with profiles.

Important notice:

By using the tools, you agree to the license terms and take full responsibility for any consequences. Please take care to back up and protect your code before instrumenting or removing instrumentation. Take care not to overwrite your code when using the instrumenting tools unless you have a backup.

License reminder

Instrumentation: thag_instrument and thag_uninstrument

Automatically add or remove profiling attributes to/from code, outputting to a different file.

These tools aim to be lossless, i.e. preserving comments and formatting intact. For this purpose they rely on rust-analyzer's ra_ap_syntax and ra-ap-rustc_lexer crates rather than syn and quote.

Input is from stdin and output is to stdout.

NB: always direct output to a different file.

Replace 2021 with your project's Rust edition (2015, 2018, 2021, 2024) as required by the rust-analyzer crates:

thag_instrument: Add profiling attributes to code

thag_instrument 2021 < path/to/your/file.rs > path/to/your/instrumented_file.rs

thag_uninstrument: Remove profiling attributes from code

thag_uninstrument 2021 < path/to/your/instrumented_file.rs > path/to/your/de-instrumented_file.rs

• Ensure your original source is safely backed up or committed before instrumenting.

• Replace 2021 with your project's Rust edition.

• Do NOT redirect the output back to your source file in the same command.

• In the case of thag_uninstrument, you may need to remove the relevant imports manually. thag_uninstrument may leave the occasional trailing space and one or two blank lines at the very top of the file.

• Compare the original and instrumented files to ensure correctness, especially if you're using a custom edition.

  For example Comparing before and after with vimdiff:

  vimdiff demo/factorial_ibig_product.rs demo/factorial_ibig_product_profile.rs




  If you're profiling a project source file, at this point you'd want to replace the uninstrumented code with the instrumented version.

Repeat for all modules you want to profile.

Analysis: thag_profile

Interactive analysis of profiling results:

thag_profile <dirname>

Profile Analysis Features

The analyzer provides:

1. Statistical Reports: Shows function calls, total time, average time, memory allocations by function, and memory allocation size analysis.

2. Interactive Flamegraphs and Flamecharts: Visual representation of performance data, both cumulative and detailed

3. Differential Analysis: Before/after comparisons using inferno differential flamegraphs module.

4. Grouping, selection and ordering of output for analysis: Groups files by program name and displays them with most-recent first.

5. Graph filtering: Filter out irrelevant sections of flamegraphs and flamecharts for a better view.

Flamegraphs and Flamecharts

Cumulative flamegraphs and detailed flamecharts provide an intuitive interactive visualization of your profiling data. The wider a function appears, the more time (or allocated / deallocated memory) it represents relative to the total for the execution.

Flamegraphs and flamecharts are interactive SVGs that allow you to:

• Zoom in on specific functions

• Hover over functions to see detailed information

• Search for specific functions

• Compare before/after optimizations

thag_profiler uses the inferno crate to generate flamegraphs and flamecharts. The analysis tool allows you to choose which inferno color scheme to use and remembers your last choice for each type (time and memory).

Flamegraphs vs. Flamecharts

thag_profiler can generate both flamegraphs and flamecharts:

Flamegraphs

Example flamegraph in inferno "purple" color scheme. Click on image for interactive version with clickable bars and search.

Flamegraphs aggregate all executions of a function into one, making them ideal for identifying which functions consume the most resources overall. Use flamegraphs when you want to identify your application's hottest functions regardless of when they occur. Flamegraphs organize functions alphabetically, so unlike flamecharts there is no significance to the horizontal sequence of items - it is only the width and the parent-child relationships that are important.

Flamecharts

Example flamechart of same data in inferno "green" color scheme. Click on image for interactive version with clickable bars and search.

Flamecharts organize functions chronologically, showing the sequence of operations over time. They're particularly valuable for:

• Understanding the progression of your application's execution

• Identifying patterns in memory allocation/deallocation

• Seeing how different phases of your application behave

Note that inferno still aggregates consecutive entries with the same key into a single bar. So if a profiled function or section f is called repeatedly in a loop in a synchronous program, these executions are shown as one. In an async environment, the consecutive entries for f may be arbitrarily interleaved with entries written by unrelated asynchronous profiles being dropped, for example f,f,f,a,f,f,b,c,f. This causes inferno to group the consecutive entries for f in the arbitrary consecutive groups thus created.

In other words, while thag_profiler should always attribute an allocation event to the right function or section, or in a worst case to an ancestor at least, be aware that in an async environment it may attribute the event to the wrong execution of that function. We could consider working around this, for example by giving each execution a unique subscript, but in the async scenario when multiple instances of f are running concurrently, thag_profiler's memory tracker has no sure way to tell them apart anyway, and must resort to arbitrarily attributing the allocation to the most recently instantiated active one of them, falling back to the closest matching ancestor as a last resort.

For time profiling, flamecharts show when each function executed relative to others. For summary memory profiling, they are less significant because all allocations for a function are shown as at the end of execution of the function, because it is at this point that the Profile object generated for that execution of the function is dropped, causing its drop method to write the function's accumulated allocations to the -memory.folded file.

For detailed memory profiling, flamecharts are again more significant. They show when the allocations (for -memory_detail.folded and deallocations (for -memory_detail_dealloc.folded) actually occurred, as they are recorded immediately the allocation or deallocation requests are received and identified by the global allocator.

In general, choose flamegraphs for a high-level view of resource usage and flamecharts for detailed analysis of execution flow.

Best Practices

1. Profile representative workloads: Make sure your test cases represent real-world usage

2. Focus on hot paths: Look for the widest blocks in your flamechart - these are your performance bottlenecks

3. Compare before/after: Always compare profiles before and after optimization

4. Watch for memory bloat: Use memory profiling to identify excessive allocations

5. Verify changes: Always verify automated changes with a diff tool

6. Don't run with option both for serious time profiling: The memory profiling overhead tends to distort the relative execution times of the functions and sections

7. Section profiling in async functions: For accurate callstack representation in async contexts, use the async_fn parameter when manually creating profile sections within async functions

8. Profiling efficiency: Every execution of an actively profiled function requires a Profile struct to be set up at the beginning and torn down at the end after logging the captured data for that function execution. The Profile setup and teardown time amount to about 1ms (based on an M1 MacBook). This time is stripped out of the results, but still has an appreciable effect on runtime when profiling very lightweight functions that are called many thousands, millions or billions of times during execution. If such a function is called from a loop, consider profiling the loop as a whole (with a section profile or by factoring it out to a separate profiled function) rather that incurring the extra overhead of profiling the inner function to record each individual function call.

9. Understand how differential profiling graphs work in inferno: thag_profiler delegates these entirely to inferno, which does not report straight comparisons but normalises the "before" profile count to match the "after" one in an attempt to compensate for inferred changes in external variables such as machine loading, even though they may in fact be almost entirely due to the changes being compared. This seems to have been optional in the Brendan Gregg's original flamegraph toolkit but not in inferno. I don't have strong views on the merits of this implementation, but it may cause small but worthwhile changes to literally pale into insignificance beside the most substantial ones, and not show up as improvements until hovered over.

async fn fetch_data() {
    // Tell the profiler this section is within an async function
    profile!(database_query, async_fn);

    // Async operations...
    let result = query_database().await;

    end!(database_query);
}

This ensures that the profile correctly associates the section with its async parent function in the profiling output. Without this parameter, the section will appear a second time in the flamegraph without its async identifier, as there is no way to link the two automatically.

Troubleshooting

Common Issues

1. Missing profile output: Ensure that the time_profiling or full_profiling feature of the thag_profiler dependency is enabled.

Ensure profiling is enabled and you have write permissions in the current directory.

Ensure your code is compiled with the debug option while profiling. For example in release mode:

[profile.release]
debug = true
strip = false

Ensure that unbounded section profiles do not go out of scope before the end of the current function.

Ensure that bounded section profiles do not go out of scope before the end! macro.

2. Inaccurate profile output: Ensure you have no nested or overlapping profile sections. A high degree of contention between threads could also lead to memory allocations not being reported or reported against an ancestor function (that is, one higher up the callstack).

3. Test failures: Profiled tests must use serialization.

4. Performance impact: Memory profiling adds significant overhead. Consider using SIZE_TRACKING_THRESHOLD=n as discussed above to ignore small allocations of integer n bytes or smaller.

5. File redirect issues: Never redirect output from the instrumentation tools back to the input file.

Inspecting Profile Files

The folded stack files are human-readable:

head your_executable-<yyyymmdd>-<hhmmss>.folded

Verification against dhat crate

The bash script scripts/compare_profilers.sh can be used to verify the accuracy of thag_profiler memory profiling against the established dhat crate.

scripts/compare_profilers.sh

You need to have jq installed to summarize the dhat results.

Notes:

1. thag_profiler does not offer a PowerShell version of scripts/compare_profilers.sh. Short of rolling your own or getting AI to convert it, you may instead find the following suggestion useful:

   Install Git for Windows and run the Git Bash app.

   Running scripts/compare_profilers.sh within the Git Bash window will still run the Windows version of thag, as opposed to using WSL.

2. dhat itself provides no guarantees. See the warning on its docs.rs page.

3. dhat and thag_profiler both use the backtrace crate to identify memory allocation sites, so to this extent they are not giving completely mutually independent assessments of memory usage.

4. To dig deeper than the summary results and investigate the extra allocation reported (at time of writing) by thag_profiler for the allocate_hashmap function, you can run a detailed thag_profiler analysis like this:

THAG_PROFILER=memory,,announce,true thag --features full_profiling demo/thag_profile_benchmark.rs -f

Then run thag_profile . and choose Memory Profile - Single and the most recent thag_profile_benchmark-<yyyymmdd>-<hhmmss>-memory_detail.folded. Drill down to the affected functions by clicking on each one in turn and compare it to the various occurrences of the same function in the DHAT viewer. This currently shows that thag_profiler is correctly reflecting 103 kB for the inserts (std::collections::hash::map::HashMap<K,V,S>::insert ) which dhat is not. There are some other minor discrepancies, but these are due to the DHAT viewer suppressing them as insignificant, and they can be tracked down in the dhat-heap.json file.

Documentation

This library provides two levels of documentation to serve different audiences:

Public API Documentation (Default)

Generate clean, user-focused documentation that hides implementation details:

cargo doc --package thag_profiler --features document-features,full_profiling,debug_logging --no-deps

This shows only the essential public API that most users need:

• Core profiling attributes (#[profiled], #[enable_profiling])
• Main configuration types (``ProfileType`)
• Essential functions (disable_profiling, is_profiling_enabled)
• Memory profiling utilities (when full_profiling feature is enabled)

Internal Documentation (Development)

Generate comprehensive documentation including implementation details:

cargo doc --package thag_profiler --features document-features,full_profiling,debug_logging,internal_docs --no-deps

For the most comprehensive documentation including private items:

cargo doc --package thag_profiler --features document-features,full_profiling,debug_logging,internal_docs --no-deps --document-private-items

This includes everything from the public API plus:

• Internal utility functions
• Debug logging infrastructure
• Advanced configuration functions
• Implementation macros and helpers
• Development and debugging tools
• Private functions and modules (when using --document-private-items)

Implementation

The library provides two convenient ways to mark internal items:

1. Using the #[internal_doc] macro (recommended):

   use thag_profiler::internal_doc;

   #[internal_doc]
   pub fn internal_utility() {
       // Hidden from public API docs
   }


2. Using the manual attribute:

   #[cfg_attr(not(feature = "internal_docs"), doc(hidden))]
   pub fn internal_utility() {
       // Hidden from public API docs
   }


Rationale

Many internal functions need to be pub for use across modules and by generated macros, but they're not intended for direct use by library consumers. The internal_docs feature flag allows:

• Library users get clean, focused documentation showing only what they need
• Contributors/maintainers can generate complete documentation for development
• docs.rs can show comprehensive documentation with all features enabled

Use the provided doc_examples.sh script to see all documentation modes in action.

Terminology

Ancestor and descendant functions

An ancestor function of a function f means any function that may directly or indirectly call function f during execution.

A descendant function of a function f means any function that may be called directly or indirectly by function f during execution.

Manifest

In a normal project, the manifest is the Cargo.toml file. In a Rust script to be run with thag(_rs), the manifest is a "toml block" consisting of a /**[toml!] ... */ comment embedded at the top of the script and containing entries in Cargo.toml format. thag uses the toml block contents in conjunction with any additional dependencies inferred from the Rust code to generate a Cargo.toml for the script.

License

SPDX-License-Identifier: Apache-2.0 OR MIT

Licensed under either of

Apache License, Version 2.0 (LICENSE-APACHE or http://www.apache.org/licenses/LICENSE-2.0)

or

MIT license (LICENSE-MIT or http://opensource.org/licenses/MIT)

as you prefer.

Contributing

Contributions will be considered (under MIT/Apache 2 license) if they align with the aims of the project.

Rust code should pass clippy::pedantic checks.
